Electric Winch

Electric Winch

Electric winch is used to complete traction drive with human power or mechanical power via a reel, which can handle heavy materials or loads vertically or horizontally or obliquely. The electric winch has the features, such as, generality, compact structure with small volume, light dead weight, large lifting capacity and convenient to move, etc.aYRHenan Dongqi Machinery Co., Ltd

Electric Winch

An electric winch is usually consisted of the following components: coupling, brake, gear box, reel, all of which are installed on the machine frame for material handling. Electric winch has a good speed regulation which can lift heavy loads up to a high place at relative fast speed and make an empty hook down swiftly while for sensitive materials, the electric winch can run at a relatively slow speed.aYRHenan Dongqi Machinery Co., Ltd

aYRHenan Dongqi Machinery Co., Ltd

Electric winch assembley video -  Dongqi electric winch manufactuerer and supplier aYRHenan Dongqi Machinery Co., Ltd

Work principle of Electric Winch

How does the electric winch work? Generally, electric winch transforms electric power into mechanical power through motor, where the rotor of motor runs and produces the power which is outputted and then goes through the brake, and the reducer reduces the speed to rotate the reel. The reel winds the wire rope and passes through pulley block to make the hook lift the load, and transforms mechanical energy into mechanical work for material handling, such as, the transportation, load and unload of heavy weights.aYRHenan Dongqi Machinery Co., Ltd

Electric winches designed with various voltages

According to your power voltage, Dongqi Crane is able to provide you custom electric winches. Usually, the following electric  winch voltages are available from Dongqi Crane.aYRHenan Dongqi Machinery Co., Ltd

  • 110V winch: 110V  winch is winch machine that use 110V voltage.
  • 120V winch: 120V winch refers to Electric winch voltage of 120, all types of winch machine of Dongqi Crane group can be designed as 120V winch.
  • 240V winch: 240V winch is winch machine that the voltage is 240 voltage.

Custom electric winch with custom voltages, 110V, 120V, 240V are at your selection. Check more on 110V winch, 120V whinch, 240V winch now. aYRHenan Dongqi Machinery Co., Ltd

Hot electric winch and main parameters

Electric winches can be grouped into various types, such as, JM Series electronic controlling slow speed winch, JK series electronic control high speed winch, JMM friction series winches, JK-D series winch and IKL series hand control high speed free rolling winch. Each type of electric winch has its own features and advantages, which can find their places in the various applications and performs.aYRHenan Dongqi Machinery Co., Ltd

Dongqi Hoist and Crane has types of electric winch for you, such as,small winch, light duty winch, and heavy duty winch, rope winch, cable winch, hoist winch, mining winch and other types of industrial winch,etc. In the following, the hot electric wicnh will be presented for your reference, inculding,  Variable speed electric winch for salePlanetary electric winch for saleFriction electric winch for saleHigh speed winch for saleLow speed electric winch for saleDouble drum electric winch for salePiling electric winch for sale, and Heavy duty winch, etc.aYRHenan Dongqi Machinery Co., Ltd

Variable speed elecric winch

Variable speed electric winch for saleaYRHenan Dongqi Machinery Co., Ltd

Variable speed electric winch for saleaYRHenan Dongqi Machinery Co., Ltd

Main parameters of variable speed electric winchaYRHenan Dongqi Machinery Co., Ltd

  • Electric winch model: JT3
  • Electric winch rated load: 30 KN
  • Electric winch rated speed: 0-30 m/min
  • Electric winch rope capacity: 200 m
  • Electric winch rope diameter: 17 mm

Highe speed electric winch

High speed winch for saleaYRHenan Dongqi Machinery Co., Ltd

High speed winch for saleaYRHenan Dongqi Machinery Co., Ltd

High speed electric winch main parameters:aYRHenan Dongqi Machinery Co., Ltd

  • High speed electric winch model: JK0.5
  • High speed electric winch rated load: 5 KN
  • High speed electric winch rated speed: 22 m/min
  • High speed electric winch rope capacity: 190 m
  • High speed electric winch rope diameter: 7.7 mm

Low speed electric winch

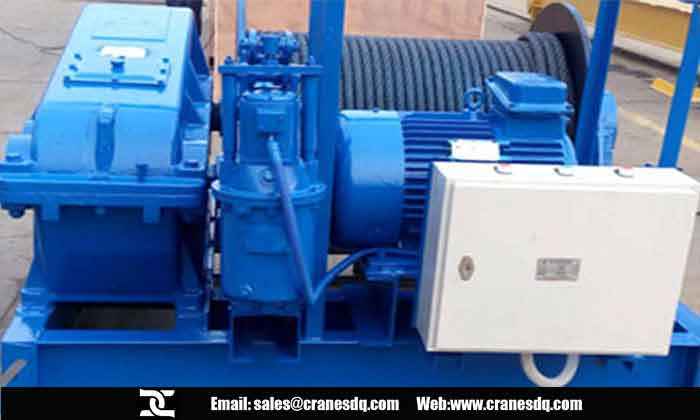

Low speed electric winch for saleaYRHenan Dongqi Machinery Co., Ltd

Low speed electric winch for saleaYRHenan Dongqi Machinery Co., Ltd

Main parameters of low speed electric winchaYRHenan Dongqi Machinery Co., Ltd

  • Electric winch model: JM1
  • Electric winch rated load: 10 KN
  • Electric winch rated speed: 15 m/min
  • Electric winch rope capacity; 100 m
  • Electric winch rope diameter: 9.3 mm
  • Various voltage and frequency (220v,380v,415v,440v).
  • Electric winch rope Capacity from 0.5T to 200T.
  • Stable slow speed: 0-20m/min .
  • Rope length: 10m to 2000m .
  • Used for horizontally pulling and vertically lifting.

Double drum electric winch

Double drum  electric winch for saleaYRHenan Dongqi Machinery Co., Ltd

Double drum electric winch for saleaYRHenan Dongqi Machinery Co., Ltd

Main parameter of Double drum electric winchaYRHenan Dongqi Machinery Co., Ltd

  • Electric winch model: 2JKL2
  • Double drum electric winch rated load: 20 KN
  • Double drum electric winch rated speed: 30 m/min
  • Double drum electric winch rope capacity: 150 m
  • Double drum electric winch rope diameter: 12.5 mm

JM andJMM Series Electric Winch

JM series electric winches is a gear reducer type drive type winch, which is mainly used for handling materials under 10 tons. JM electric winch can be used to hoist, pull, load and draw heavy weights. It also can be applied to various large and medium concrete structure and the installation and disassembly of mechanical equipment. It is suitable for the civil construction and installation project in construction and installation company, mine lot and factory.aYRHenan Dongqi Machinery Co., Ltd

JMM electric winch is usually used for long distance traction of various kinds of large and super concrete and steel structure, steel cable, etc. JMM electric winch is suitable for all kinds of bridge engineering, large factories, mine engineering equipment installation.aYRHenan Dongqi Machinery Co., Ltd

Friction electric winch for saleaYRHenan Dongqi Machinery Co., Ltd

Friction electric winch for saleaYRHenan Dongqi Machinery Co., Ltd

Main parameters of the Friction electric winchaYRHenan Dongqi Machinery Co., Ltd

  • Friction electric winch Model: JMM55
  • Friction electric winch rated load: 550 KN
  • Friction electric winch rated speed: 5 m/min
  • Friction electric winch rope capacity: 2000 m
  • Friction electric winch rope diameter: 60 mm

JK-D Series Electric Winch

JK-D electric winch is a new type of winch which can be an ideal replacement of traditional hoist.The JK-D electric winch has the features of small teeth difference, compact structure, small volume, smooth running, convenient and easy maintenance, low noise and a long service life.JK-D electric winch is widely used in building construction, dock, bridges and metallurgical industries for lifting and installation.aYRHenan Dongqi Machinery Co., Ltd

Planetary  electric winch for saleaYRHenan Dongqi Machinery Co., Ltd

Planetary electric winch for saleaYRHenan Dongqi Machinery Co., Ltd

Main parameters of planetary electric winchaYRHenan Dongqi Machinery Co., Ltd

  • Model: JK0.75D
  • Planetary electric winch Rated load: 7.5 KN
  • Planetary electric winch Rope capacity: 100 m
  • Planetary electric winch Rope diameter: 9.3 mm
  • planetary electric winch Motor power: 3 kwaYRHenan Dongqi Machinery Co., Ltd


JKL Series Electric Winch

JKI electric winch is mainly used for handling heavy weights in construction site, factories, mine, ports, especially in bridge dock construction base engineering free-fall punching piling operation.aYRHenan Dongqi Machinery Co., Ltd

Piling electric winch for saleaYRHenan Dongqi Machinery Co., Ltd

Piling electric winch for saleaYRHenan Dongqi Machinery Co., Ltd

Piling electric winch main parametersaYRHenan Dongqi Machinery Co., Ltd

  • Piling electric winch model: JKL2
  • Piling electric winch rated load: 20 KN
  • Piling electric winch rated speed: 30 m/min
  • Piling electric winch rope capacity: 150 m
  • Piling electric winch rope diameter: 13 mm

How to use electric winch safely

Before the electric winch start working, in addition to comply with the winch safety operation, it should be test run, inspect every parts and familiar with the operation situation. Here is some instructions:aYRHenan Dongqi Machinery Co., Ltd

  1. The anchor bolts will be fixed or embedded anchor when the winch is installed. To avoid dragging the electric winch when working.
  2. Before using the electric winch, check all the parts carefully and whether the bolts loose, wire rope fastening degree and the lubrication conditions to every part, etc.
  3. The electric winch needs to be no-load test run for 15 minutes before working. Check each transmission part to make sure it has no shock vibration phenomenon, and the switches is sensitive, and the brake is flexible and reliable.
  4. Overload is absolutely forbidden during operation. The lifting capacity of electric winch is in the technical parameters range.
  5.  Dynamic load test is exceed 10% of rated load of electric winch, repeatedly lifting several times. After testing, check whether the electric winch’s mechanical transmission, electric parts and connect parts are normal and reliable.
  6.  During operation, prohibit cleaning or refueling, no person stand in front of the machine or under the heavy objects. Also notice the transmission performance of machine, to keep the transmission parts lubricated well.
  7. During operation, the operator should pay attention to the unfavorable conditions of wire rope on the drum at any time, and clean them in time. Strictly prohibit to use the hand to guide the wire rope.
  8. Electric winch should be operated by specialist, and inspect and maintain it regularly to avoid the damage caused by improper using. If find it out of order during working, the main power should be cut off immediately.
  9.  When electric winch is not e working, the heavy object is not allowed to suspend in the air. The main power source should be turned off after working.
  10.  Gear reducer oil level should keep above the oil level elevation line, reducer adopted 55-7 oil for lubrication. Change the oil every 2-3 months. And other lubrication parts refuel 2-4 times every shift.
  11.  After half year’s working, inspect the reducer and change the lubrication oil, inspect the brake, motor and test the motor’s insulation resistance to ensure safety production.aYRHenan Dongqi Machinery Co., Ltd


Get you custom electric winch

Winch for sale: winch kit and winch accessories aYRHenan Dongqi Machinery Co., Ltd

Winch for sale: winch kit and winch accessories

Dongqi Hoist and Crane offerst types of electric winches and custom winches. If you need any winch, please feel freel to contact us. If you want to know more about Dongqi electric winch offering, please check Dongqi winch shop on line presentation, and electric winch projects presentation. If you need any winch, please leave us the following information:
  • What is the pulling direct of the winch you need? Up down or left right?
  • What is the winch tonnage?
  • What is the winch voltage?
  • What is the winch speed?
  • What is the wire rope length of the winch you need?
