Double girder overhead crane doubles your efficiency and satifaction

22 Sep, 2016

Double girder overhead crane is your first choice for heavy duty material handling which needs a very large range of overhead crane spans, heights of lift and speed range. Different with double girder gantry cane, the double girder overhead crane can be used in various building structures, new or existing building, due to the advantages of various main bridge crane girder designs. The cranes can be provided with multiple hoisting system arrangements depending upon the load and lifting requirements.

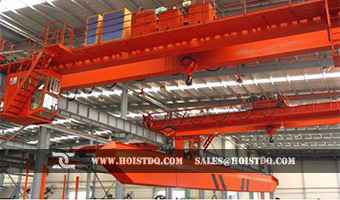

Double Girder Overhead Cranes







Advantages of double girder overhead crane

  • High stability and design rigidity
  • Highly cost-effective
  • High efficacy and stable performance
  • Modular design

Features of double girder overhead crane

  • Dongqi double-girder overhead crane provides you exceptional load capacity and minimum deadweight.
  • Our double girder overhead crane can ensure the precise and stable material handling due the specially designed travel characteristics.
  • Besides, the crane hook is placed between the two girders, improving the lifting heights.
  • Dongqi double girder overhead cranes are available in almost unlimited capacities
  • Dongqi double girder overhead cranes could be installed with two hoists on a single trolley or two separate hoists
  • Generally move at higher speeds than underhung cranes with speeds approaching 200 fpm.
  • Double girder overhead crane has pendants and radio controls to ensure the safety of crane operation.

Hot double girder overhead crane designs of Dongqi Crane

Double girder overhead crane is designed to handle heavy loads and objects over 20 tons, thus, a double girder overhead crane also refers to a heavy duty overhead crane. Hook double girder overhead crane is one of the mostly used heavy material handling equipment with the lifting capacity from 5 ton to 550 ton, working class up from A4 to A7.

Up to 550 ton double girder overhead cranes of various crane designs are for sale good price. Types of double girder overhead cranes are available, such as, hook overhead crane, gab bucket overhead crane, electromagnetic overhead crane, soaking pit overhead crane, etc. Contact us to get your double girder overhead crane now.

European Style Double Girder overhead crane

European Double Girder Overhead Crane
FEM double girder overhead crane meets all the European crane standards with CE cerfiticates.
Fem double girder eot crane specifications: Crane Capacity of 5~ 80 ton, Span length: 10.5~35.5m, Working class: A4~A7,

Double girder electric hoist overhead crane

Electric Hoist Double Girder Overhead Crane
Electric hoist double gider overhead crane is widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, stock ground, and power station, textile industry and food industry.
Double girder eot crane specifications: Capacity:5~63 ton, Span Length:8m~32m, Working Class: A3~A5,

overhead crane with hook - Dongqi double girder overhead crane

 Double Girder Overhead Winch Crane
General use  double girder overhead electric winch crane is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.
Double girder electric winch crane specifications: Capacity: 5-550 ton, Span length: 10.5~35.5m, Working class: A4~A7,

Explosion proof double girder overhead crane

Explosion Proof Double Girder Overhead Crane
Explosion proof overhead crane is designed for explosive gas atmospheres with explosion-proof electrical equipment.
EX-proof double girder eot crane specifications: Capacity: 5~75 ton, Span Length: 10.5~31.5m, Working Class: A4, A5,

Electromagnetic crane - Double girder overhead crane of Dongqi

Electromagnetic Double Girder Overhead Crane
The electromagnetic overhead crane is used in metallurgy factory or outdoor place to load and transport electromagnetic black metal materials, such as , steel ingot, merchant steel and pig iron, etc.
Electromangetic double girder eot crane specifications:Capacity:5~32 ton,Span Length:10.5~31.5m,Working Class:A5, A6,

Double trolley overhead crane- Dongqi double girder overhead crane

Double Trolleys Double Girder Overhead Crane
The double trolley overhead crane is used to lift long and big loads.
Double girder eot crane specifications:Capacity:(2.5+2.5)~(200+200) ton, Span length:10.5~35.5m,

Insulation crane - Double girder overhead crane of Dongqi

Insulation Double Girder Overhead Crane
The insulation overhead crane is used to handle electrolyse non-ferrous metals such as magnesium, aluminum.
Insulation double girder eot crane specifications:Capacity:5~50 ton,Span Length:10.5~31.5m,Working Class:A6,Ambient Temperature:-25~50℃,

Grab crane - Double girder overhead crane of Dongqi

Grab Bucket Double Girder Overhead Crane
Grab overhead crane is widely used in power station, storage, workshop, and port to load and unload scattered objects.
Grab bucket double girder eot crane specifications:Capacity:5~25 ton ,Span Length:10.5~34.5m,Working Class:A6,

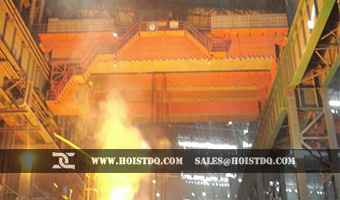

Ladle overhead crane

Ladle Double Girder Overhead Crane
Ladle overhead crane are widely used in the smelting industry to convey, pour and charge the liquid hot metal in the process of smelting.
Double girder eot crane specifications:Capacity:5~74 ton,Span Length:10.5~31.5m,Working Class:A7,Ambient Temperature:-10~60℃,

Double girder overhead crane services

Besides types of hoists and cranes, Dongqi is able to offer you all around Double girder overhead crane services, which includes

  • Double girder overhead crane design,
  • Double girder overhead crane Installation,
  • Double girder lifetime Maintenance,
  • Crane operator Training,
  • 24/7 Technical support for your double girder overhead crane
  • Double girder eot Crane Modernization,
  • Crane parts for your double girder overhead crane and eot crane

Cases of Dongqi double girder overhead crane

Dongqi Crane has offered various double girder overhead crane designs for customers around the world, especially for South Africa, Malaysia, United Arab Emirates, Singapore, Canada, Saudi Arabia, Philippines, Pakistan, Australia, United States, Thailand, United Kingdom and Brazil, etc. If you need any type of crane,please leave a message below. In the following, the double girder overhead crane project cases are presented for your reference.

10 ton double girder overhead crane installation in Bangladesh

10 ton double girder overhead crane installation in Bangladesh for steel coil plant. From the 2013 years on, they bought 3 sets double girder eot cranes from us and the finished 10 ton double girder overhead crane is the fourth one, which is installed in Chittagong, Bangladesh.
10 ton double girder overhead crane installation in Bangladesh

10 ton double girder overhead crane installation in Bangladesh

Double girder overhead crane for sale in Nigeria

2 sets of 50/10 ton double girder overhead cranes and 2 sets of 25 ton double girder overhead cranes are required by Nigeria clients for material handling in November. And confirming the payment terms with the end user, Dongqi Crane signed the contract with Mr. Gary. Specifications of 4 sets of double girder overhead cranes are showed for your reference.

Double girder overhead crane for sale Nigeria

Double girder overhead crane for sale in Nigeria

25 ton double girder overhead crane specifications

  • Double girder eot crane span:23.65 m
  • Quality of overhead eot crane: 2 sets

50/10 ton double girder overhead crane specifications

  • Double girder eot crane model: LH
  • Double girder eot crane capacity: 5 0/10 ton
  • Double girder eot crane span: 23.614m
  • Quality of overhead eot crane: 2 sets
  • Voltages of double girder overhead crane: 3PH 400V 50HZ

5 ton double girder overhead cranes for power station Honduras

On 11th April 2014, Ing. Leonel Nuñez, our client’s engineer, from Honduras, came to us and visited our factory seriously. After visiting Dongqi Crane’s production workshop especially the overhead crane parts workshop, the Honduras clients purchased two sets 2 5ton double girder overhead crane, used for power station machine maintenance, and the main double girder overhead crane specifications are as follow:

5 ton double girder overhead cranes for power station Honduras

5 ton double girder overhead cranes for power station Honduras


Double girder overhead crane specifications

  • Double girder eot crane capacity: 5 ton
  • Double girder eot crane span: 9.5 m,
  • Double girder eot crane lift height: 13 m,
  • Double girder eot crane power supply:220V,60Hz,3p,
  • Double girder eot crane lift speed: double speed.

Double girder overhead crane projects gallery

Get your custom overhead crane design

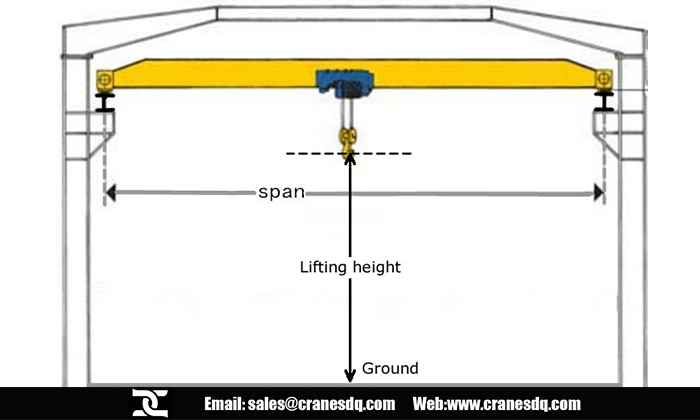

Parameters of overhead crane drawing
Overhead crane: S= Crane Span, H= Lifting height

In order to give you suitable overhead crane solution and specific overhead crane price promptly, please help our overhead crane engineer to confirm the following information as much as possible:

  1. Types of overhead crane: (Single or double girder? European type or Common one? )
  2. Capacity:
  3. Span:
  4. Height of Lift:
  5. Power supply: (3phase? Voltage? Hz?)
  6. Bay/ Travelling Length:
  7. Quantity:
  8. Operation: Through Pendant/Radio Remote/Cabin Control
  9. Indoor/Outdoor:
  10. Application (What are you planning to lift) :
  11. Environment (Normal/ hazardous) :
  12. Building drawing if possible:
  13. Location:
  14. Industry type: (Eg: Auto, steel, sugar, stone, etc)
  15. Rail Existing/New: (Size in case of Existing)
  16. Number of Cranes in bay:
  17. Existing Structure/New Structure:
  18. Your full company address and contact details:

If you do not know about how to select the overhead crane, please feel free to leave us a message or email to sales@cranesdq.com. The reply of our overhead crane engineer will be given within 24 hours. Get your custom design overhead crane.
