portable gantry crane and rolling gantry crane

Small protable gantry crane, roller gantry crane, cheap gantry

Small protable gantry crane, roller gantry crane, cheap gantry

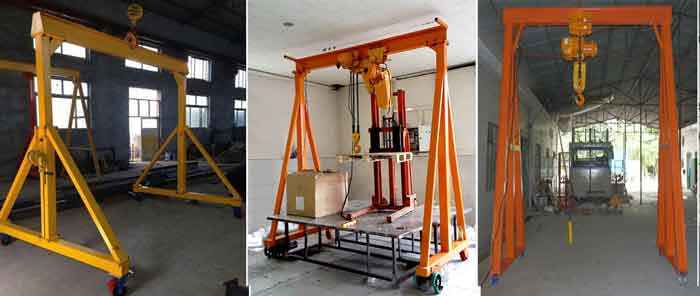

Portable gantry crane

Portable gantry crane is also know as, movable gantry crane, rolling gantry crane,which is small light duty gantry crane for light material handling with the capacity below 7.5 ton. The portable gantry crane  is your portable material handling solution with high cost-effectiveness. The Gantry portable hoist crane is produced by Chinese well-known portable gantry crane manufacturer, Dongqi Hoist and Crane.

Main Parameters of Gantry portable hoist crane:

  • Portable Gantry Crane Lifting Capacity: 300kg~ 10 ton
  • Portable Gantry Crane Span Length: 3~6m
  • Portable Gantry Crane Lifting Height: 2.5~6m
  • Custom designed portable gantry crane is available.
  • Accept customized! Contact Us Now!

Portable gantry crane main components

Main beam of gantry crane on wheels Small gantry parts: main beam

Main beam of gantry crane on wheels

The portable gantry crane uses Q235/Q345 carbon structural steel. Strong box type with standard deflection



Support leg of gantry crane on wheels Small gantry parts: crane gantry

Support leg of gantry crane on wheels

Q235/Q345 carbon structural steel is used to make the support leg of the portable gantry crane. Strong box type with two coats of paint



Ground beam of portable gantry crane Small gantry parts:ground beam

Ground beam of portable gantry crane

Q235/Q345 carbon structural steel is used to produce the ground beam of the portable gantry crane. With Nanjing brand motor



Electric wire rope hoist of of portable gantry crane Small gantry parts:electric wire rope hoist

Electric wire rope hoist of portable gantry crane

CD1/MD1 Electric made by our own group, insulation class IP44 /IP55



Electric chain hoist of portable gantry crane Small gantry parts:electrric chain hoist

Electric chain hoist of portable gantry crane

The chain electric hoist is lighter than wire rope hoist, more easily to operate, and reduce space.



Crane wheel of portable gantry crane Small gantry parts:crane wheels

Crane wheel of portable gantry crane

Universal wheel, it is different than other types of gantry cranes, it can easy move by hand in random direction.



Portable gantry crane applictaions

Portable gantry crane is widely used in the workshop, warehouse, garage, and many other indoor and outdoor places for its equipped with the features of light dead weight and easy operation. Compared with the heavy-duty gantries, portable gantries is able to move and disassemble from one worksite to another easily.

Get your custom portable gantry crane

Get your custom portable gantry crane

Projects of Dongqi cheap gantry crane

  • portable gantry crane - Dongqi small gantry crane manufacturer
    Dongqi small gantry crane manufacturer
  • portable gantry crane - Dongqi small gantry crane manufacturer
    Dongqi small gantry crane manufacturer
  • portabl gantry crane - Dongqi small gantry crane manufacturer .jpg
    Dongqi small gantry crane manufacturer
  • portable gantry crane - Dongqi small gantry crane manufacturer
    Dongqi small gantry crane manufacturer
  • portable gantry crane - Dongqi small gantry crane manufacturer
    Dongqi small gantry crane manufacturer

Get your custom gantry crane

Parameters needed for custom your portable gantry crane

Small gantry crane dimensions needed for quotation

Small gantry crane dimensions needed for quotation

If you have any inquiry about the portable gantry crane, please leave us the following parameters to give you more specific quotation;

  • Lifting capacity: ___tons,
  • Crane height :___meters,
  • Width/Span: ___meters,
  • Voltage :___, etc.( 380v/ 50hz/ 3 phase)
  • Applications or Working conditions.
Welcome to contact us and get portable gantry crane price!
