Home > Products > Featured Hoist and Crane

Electric winch for sale, Your Electric winch shop on line

01 Dec, 2016

Electric winch for sale. Dongqi electric winch shop offers you customized electric winch for your application. Types of electric winches are available, such as industrial winch, construction winch, mine winch, 110 v winch, 120 v winch, small winch and other lifting winch, etc. Get your electric winches now.

Winch for sale: winch kit and winch accessories

Electric winch at Dongqi winch workshop

Electric winch

Electric winch is used to complete traction drive with human power or mechanical power via a reel, which can handle heavy materials or loads vertically or horizontally or obliquely. The electric winch has the features, such as, generality, compact structure with small volume, light dead weight, large lifting capacity and convenient to move, etc.

Electric winches offering of Dongqi

Dongqi electric winch shop mainly offering you the Engineering / construction winch, Marine Winch and Mine Winch with the capacity of 1-800 ton, which can be customize to you application environment.

Dongqi Hoist and Crane has types of electric winch for you, such as,small electric winch, light duty winch, and heavy duty winch, rope electric winch, cable electric winch, hoist winch, mining industrial electric winch and other types of electric winch, etc. In the following, the hot electric winch will be presented for your reference, inculding, Variable speed electric winch for sale, Planetary electric winch for sale, Friction electric winch for sale, High speed winch for sale, Low speed electric winch for sale, Double drum electric winch for sale, Piling electric winch for sale, and Heavy duty winch, etc.

Variable speed electric winch for sale

Variable speed electric winch for sale

Model: JT3 Construction winch
Electric winch rated load: 30 KN
Electric winch rated speed: 0-30 m/min
Electric winch rope capacity: 200 m
Electric winch rope diameter: 17 mm

Get your electric winch: sales@cranesdq.com

Planetary  electric winch for sale

Planetary electric winch for sale

Model: JK0.75D Construction winch
Electric winch rated load: 7.5 KN
Electric winch rope capacity: 100 m
Electric winch rope diameter: 9.3 mm
Winch moter power: 3 kw

Get your electric winch now.

Friction electric winch for sale

Friction electric winch for sale

Model: JMM55 Construction winch
Electric winch rated load: 550 KN
Winch Electric winch rated speed: 5 m/min
Electric winch rope capacity: 2000 m
Electric winch rope diameter: 60 mm

Contact us to get your electric winch.

High speed winch for sale

High speed winch for sale

Model: JK0.5 Construction winch
Electric winch rated load: 5 KN
Electric winch rated speed: 22 m/min
Electric winch rope capacity: 190 m
Electric winch rope diameter: 7.7 mm

Get your electric winch: sales@cranesdq.com

Low speed electric winch for sale

Low speed electric winch for sale

Model: JM1 construction winch
Electric winch rated load: 10 KN
Electric winch rated speed: 15 m/min
Electric winch rope capacity; 100 m
Electric winch rope diameter: 9.3 mm

Get your electric winch.

Double drum  electric winch for sale

Double drum electric winch for sale

Model: 2JKL2 construction winch
Electric winch rated load: 20 KN
Electric winch rated speed: 30 m/min
Electric winch rope capacity: 150 m
Electric winch rope diameter: 12.5 mm

Get your electric winch.

Piling electric winch for sale

Piling electric winch for sale

Model: JKL2 construction winch
Electric winch rated load: 20 KN
Electric winch rated speed: 30 m/min
Electric winch rope capacity: 150 m
Electric winch rope diameter: 13 mm

Get your electric winch.

Components of Electric Winch

An electric winch is usually consisted of the following winch parts: coupling, brake, gear box, reel, and all the parts of a winch are installed on the electric winch machine frame for material handling.

Electric winch has a good speed regulation, which can lift heavy loads up to a high place at relative fast speed and make an empty hook down swiftly while for sensitive materials, the electric winch can run at a relatively slow speed.

How does the electric winch work? Generally, electric winch transforms electric power into mechanical power through winch motor, where the rotor of motor runs and produces the power which is outputted and then goes through the brake, and the reducer reduces the speed to rotate the reel. The reel winds the wire rope and passes through pulley block to make the hook lift the load, and transforms mechanical energy into mechanical work for material handling, such as, the transportation, load and unload of heavy weights.

Usually, the power of electric winch can be produced according to requirements to meet the application voltages. Dongqi electric winch shop is able to provide you electric winches with the following voltages, such as, 110v winch, and 120 winch, and other custom voltage winches.

Industrial electric winches

As an electric winch supplier and manufacturer, Dongqi is able to provide you types of electric winch for various industries. Our industrial winches has a wide application, extremely durable winch motor, and can be used in heavy duty application environment.

Main parameters of industrial winches

Dongqi electric winch shop is able to provide you electric winch with the following parameters.

  • Types of industrial winches: variable speed winch, high speed winch, low speed winch,
  • Friction electric winch, double drum electric winch, pilling electric winch, etc.
  • Rated loads of industrial winch: 5KN, 7.5KN, 10KN, 20 KN, 30KN, up to 550KN, etc
  • Rates speed of industrial winch: 5 m/min, 15 m/min, 22 m/min, 30 m/min, 0-30 m/min., etc.
  • Rope capacity of industrial winch: 100m, 150m, 190m, 200m, 2000m, etc.
  • Rope diameter of industrial winch: 7.7 mm, 9.3 mm, 12.5 mm, 17 mm, 60 mm, etc.

Electric winches designed with various voltages

According to your power voltage, Dongqi Crane is able to provide you custom electric winches. Usually, the following electric winch voltages are available from Dongqi Crane.

  • 110V winch:110V winch is winch machine that use 110V voltage.
  • 120V winch:120V winch refers to Electric winch voltage of 120, all types of winch machine of Dongqi Crane group can be designed as 120V winch.
  • 240V winch:240V winch is winch machine that the voltage is 240 voltage.

Featured industrial electric winch for mine industry

Mine industrial electric winch for sale, including types of mine industrial electric winches, i.e. electric hoist winch, explosion proof electric winch, friction shaft electric winch and shaft sink electric winch, etc.
Shaft Sinking Winch- Dongqi mine winch series

JZ Shaft Sinking Winch

Model: JZ-10/800 mine winch industrial winch
Steel rope max static tensity: 100 KN
Rope capacity: 800 m
Steel rope diameter: 32 m
Motor power: 22 kw

Get your industrial winch.
Mine Hoist Winch Dongqi mine winch series

JTK/JTP/JK Mine Hoist Winch

Model: JTK-0.8×0.6 mine winch industrial winch
Industrial Winch Speed: 1.3 m/s
Industrial Winch Width: 800mm
Lifting material: 15 KN
Max.diameter: 14 mm

Get your industrial winch.
JKB/JTPB Explosion Proof Mine Hoist Winch Dongqi mine winch series

JKB/JTPB Explosion Proof Mine Hoist Winch

Model: JTPB-1.2×1 mine industrial winch
Width: 1000 mm
Breaking force: 270 KN
Max.diameter: 20 mm

Get your industrial winch.
2JZM Friction Shaft Sinking Winch Dongqi mine winch series

2JZM Friction Shaft Sinking Winch

Model: JZM-25/800 industrial winch
Work type: Friction
Number: 1
Pulling load : 250 (KN)
Diameter: 52 (mm)

Get your industrial winch.
Dongqi mine winch series

2JZM Friction Shaft Sinking Winch

Model: JZ-10/800 mine winch industrial winch
Steel rope max static tensity: 100 KN
Rope capacity: 800 m
Steel rope diameter: 32 m
Motor power: 22 kw

Get your industrial winch.

Custom electric winch with custom voltages, 110V, 120V, 240V are at your selection. Check more on110V winch, 120V whinch, 240V winchnow.

Electric winch shop on line. Types of winches for sale such, as, cable winch, small winch, hoist winch, crane winch, motor winch, drum winch, and other types of industrial winches, and winch accessories, from winch manufacturer, Dongqi Crane. Visit your electric winch shop now.

Special winch offering of Dongqi Hoist and Crane

crane winch- Dongqi electric winch shop
Crane winch- Dongqi winch shop
hoist winch- Dongqi electric winch shop
Hoist winch- Dongqi winch shop
anchor winch- Dongqi electric winch shop
Anchor winch for sale - Dongqi electric winch shop
rope winchs- Dongqi electric winch shop
Rope winch- Dongqi winch shop
cable winch for sale - Dongqi electric winch shop
Cable winch- Dongqi winch shop
drum mooring winch for sale - Dongqi electric winch shop
Drum winch- Dongqi winch shop
jmm hydraulic winch- Dongqi electric winch shop
Hydraulic winch- Dongqi winch shop
electric winchs - Dongqi electric winch shop
Electric winch- Dongqi winch shop
diesel winch for sale - Dongqi electric winch shop
Diesel winch- Dongqi winch shop
power winch- Dongqi electric winch shop
Power winch- Dongqi winch shop
lifting winch- Dongqi electric winch shop
Lifting winch- Dongqi winch shop
pulling winchs- Dongqi electric winch shop
Pulling winch- Dongqi winch shop
recovery winch- Dongqi electric winch shop
Recovery winch - Dongqi winch shop

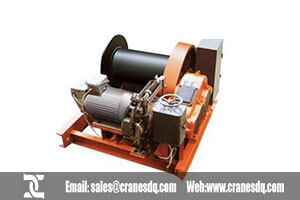

worm gera winch- Dongqi electric winch shop
Worm gear winch - Dongqi winch shop
tugger winch for sale - Dongqi electric winch shop
Tugger winch- Dongqi winch shop

By capacity

Small winch for sale - Dongqi electric winch shop
Small winch- Dongqi winch shop
light duty winch- Dongqi electric winch shop
Light duty winch- Dongqi winch shop
heavy duty winch- Dongqi electric winch shop
Heavy duty winch- Dongqi winch shop

By application occasions

shop winch- Dongqi electric winch shop
shop winch- Dongqi winch shop
Indusrial winch- Dongqi electric winch shop
Industrial winch- Dongqi winch shop
home winch- Dongqi electric winch shop
Home winch- Dongqi winch shop

By voltage

110 v winch- Dongqi electric winch shop
110 v winch- Dongqi winch shop
120v winch- Dongqi electric winch shop
120 v winch- Dongqi winch shop
240 V winch for sale - Dongqi electric winch shop
240v winch- Dongqi winch shop

By lifting capacity

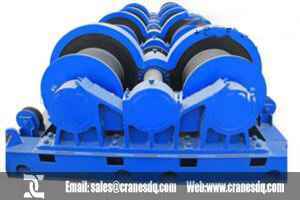

30ton winch for sale - Dongqi electric winch shop
30 tons winch for sale - Dongqi electric winch shop
20ton winch for sale - Dongqi electric winch shop
20 tons winch for sale - Dongqi electric winch shop
15ton winch for sale - Dongqi electric winch shop
15 tons winch for sale - Dongqi electric winch shop
12ton winch for sale - Dongqi electric winch shop
12 tons winch for sale - Dongqi electric winch shop
10ton winch for sale - Dongqi electric winch shop
10 tons winch for sale - Dongqi electric winch shop
8ton winch for sale - Dongqi electric winch shop
8 tons winch for sale - Dongqi electric winch shop
5ton winch for sale - Dongqi electric winch shop
5 tons winch for sale - Dongqi electric winch shop
4ton winch for sale - Dongqi electric winch shop
4 tons winch for sale - Dongqi electric winch shop
3ton winch for sale - Dongqi electric winch shop
3 tons winch for sale - Dongqi electric winch shop
100ton winch for sale - Dongqi electric winch shop
100 tons winch for sale - Dongqi electric winch shop
50ton winch for sale - Dongqi electric winch shop
50 tons winch for sale - Dongqi electric winch shop
1ton winch for sale - Dongqi electric winch shop
1 ton winch for sale - Dongqi electric winch shop

How to use electric winch safely

Before the electric winch start working, in addition to comply with the winch safety operation, it should be test run, inspect every parts and familiar with the operation situation. Here is some instructions:

  1. The anchor bolts will be fixed or embedded anchor when the winch is installed. To avoid dragging the electric winch when working.
  2. Before using the electric winch, check all the parts carefully and whether the bolts loose, wire rope fastening degree and the lubrication conditions to every part, etc.
  3. The electric winch needs to be no-load test run for 15 minutes before working. Check each transmission part to make sure it has no shock vibration phenomenon, and the switches is sensitive, and the brake is flexible and reliable.
  4. Overload is absolutely forbidden during operation. The lifting capacity of electric winch is in the technical parameters range.
  5. Dynamic load test is exceed 10% of rated load of electric winch, repeatedly lifting several times. After testing, check whether the electric winch’s mechanical transmission, electric parts and connect parts are normal and reliable.
  6. During operation, prohibit cleaning or refueling, no person stand in front of the machine or under the heavy objects. Also notice the transmission performance of machine, to keep the transmission parts lubricated well.
  7. During operation, the operator should pay attention to the unfavorable conditions of wire rope on the drum at any time, and clean them in time. Strictly prohibit to use the hand to guide the wire rope.
  8. Electric winch should be operated by specialist, and inspect and maintain it regularly to avoid the damage caused by improper using. If find it out of order during working, the main power should be cut off immediately.
  9. When electric winch is not e working, the heavy object is not allowed to suspend in the air. The main power source should be turned off after working.
  10. Gear reducer oil level should keep above the oil level elevation line, reducer adopted 55-7 oil for lubrication. Change the oil every 2-3 months. And other lubrication parts refuel 2-4 times every shift.
  11. After half year’s working, inspect the reducer and change the lubrication oil, inspect the brake, motor and test the motor’s insulation resistance to ensure safety production.

Get your winch

Electric winch assembley video - Dongqi electric winch manufactuerer and supplier

Dongqi Hoist and Crane offerst types of electric winches and custom winches. If you need any winch, please feel freel to contact us. If you want to know more about Dongqi electric winch offering, please check Dongqi winch shop on line presentation, and electric winch projects presentation. If you need any winch, please leave us the following information:;

  • What is the pulling direct of the winch you need? Up down or left right?
  • What is the winch tonnage?
  • What is the winch voltage?
  • What is the winch speed?
  • What is the wire rope length of the winch you need?

Parts of powered winch projects

Related:

1. How to install a winch? Winch installation electric winch installation drawing & winch testing,

2. Electric winches classifications and features

3. Contact us for free electric winch brochutre pdf.
