Monorail Crane

22 Sep, 2016

Monorail crane & overhead monorail crane is designed for economical monorail material handling system. Monorail crane design provides best overhead monorail material handling system. Check Monorail crane for sale good quality and price. Single beam monorail crane from Dongqi Hoist and Crane solves your material handling problems with single shot.

Single beam monorail crane

Single beam monorail crane can take the most of the floor space and mobility, which is typically attached to the existing roof structure – columns to support the crane runway are not needed. The installation of stand-alone steel superstructures makes the overhead monorail crane the ideal solution to be flexible to production requirements.

Single beam monorail crane assembly video for your reference

Single beam monorail crane as a main type of monorail crane, is an ideal solution for handling materials. Unlike double girder overhead crane, overhead monorail crane is regarded as a kind of light duty lifting equipment match with CD1, MD1 type electric hoist. Types of overhead monorail cranes are designed to meet the demands of demands of productivity and safety. The overhead monorail crane is widely used in workshop, warehouse, and yard.

Features of Dongqi monorail crane

  • Economical way of manipulating small to large loads.
  • Designed with bolt together construction for easy installation
  • Can be relocated and added onto as needed.
  • Standard capacities range from 1 to 25 ton with larger
  • For smaller capacities with push type trolleys enclosed rail can be provided
  • Patented track is available for repetitive high cycle applications.
  • The monorails have great layout flexibility, including curves, slopes (to 14 degrees), multiple tracks, switches to multiple spurs, turntables, interlocks, and entry/exit sections.

Single beam monorail crane your cost-effective material handling solution

  • Dongqi Single beam monorail crane has the features of maximum rigidity for a minimum deadweight. This could keep the load on the monorail crane runway to a minimum.
  • The cost effective design would be your optimal choice for material handling.
  • The Single beam monorail crane has the electric hoist as the lifting mechanism with high handling speeds, providing you’re the outstanding geometry, and exceptional travelling characteristics.
  • High stability and design rigidity, Highly cost-effective, High efficiency and good performance

Single beam monorail crane is a type of overhead crane which is consisted of 3 mechanism: lifting mechanism, crane traveling mechanism, trolley traveling mechanism; lifting mechanism consist of hoist, wire rope, pulley and hook. The steel structure of overhead monorail crane is made up by main girder frame and end carriage frame, the main girder is mostly made up by the I beam and steel plates, specifically as top flange, web and I beam, within the main girder box crossed Stiffeners is settled. The safety and reliable of the steel structure directly related to the performance of the overhead monorail crane.

Application of monorail cranes

  • Monorail crane or monorail overhead crane is widely used in plants, warehouse, and material stocks to lift goods.
  • The monorail crane can be used for production processes that require lifting and moving products along a fixed path, such as painting processes, moving raw materials to workstations, or warehouse-to-warehouse transfer.
  • Due to the light weight, the monorail overhead crane enable to fit itself to lift and transport materials quickly to specific locations, which can improve the working efficiency. Dongqi monorail cranes can be customized to meet all your material handling requirements. Contact us for more information.

Overhead monorail cranes of Dongqi crane & hoist

The overhead monorail crane is custom made, which means the monorail crane size, lifting capacity and crane designs are perfectly suitable to your requirements and application environment.

Single beam hoist monorail crane

Electrical hoist overhead monorail crane

Electrical hoist overhead monorail crane is widely used in the factory, ware house, stockyard, etc.

Electrical hoist overhead monorail crane specifications: Product type: LD overhead monorail crane, Lifting capacity: 1~32t, Span length: 7.5~28.5m, Working class: A3,A4.Get your monorail crane design for free. WhatsApp: +86 150 3617 7583.

Explosion proof overhead monorail crane

Explosion proof overhead monorail crane

Explosion proof overhead monorail crane is designed for hazardous environment, such as, gas, dusty environment to enhance safety.

Explosion proof overhead monorail crane specifications: Product type: LB overhead monorail crane, Lifting capacity: 1~20t, Span length: 7.5~28.5m, Working class: A3.Get your monorail crane design for free. WhatsApp: +86 150 3617 7583.

Low Headroom Single Girder monorail crane

Low headroom overhead monorail crane

Low headroom overhead monorail cranes are designed for low height plant and factory, where the lifting room is limited but lifting height is high.

Low headroom overhead monorail crane specifications: Product type: LDP overhead monorail crane, Lifting capacity: 1~32t, Span length: 7.5~22.5m, Working class: A3, A4,

FEM overhead monorail crane - Dongqi eot crane

FEM electrical hoist overhead monorail crane

FEM hoist overhead monorail crane is designed with features of Sturdy quality,Good price, One year quality assurance, Full set of after sales service.

European hoist overhead monorail crane specification: Product type: HD overhead monorail crane,European Crane Lifting capacity: 1~30t, Span length: ≥6m, ,Working class: A5.Get your monorail crane design for free. WhatsApp: +86 150 3617 7583.

European Style Underslung Crane

European underslung overhead monorail crane

European underslung single girder underslung crane is installed on the roof of the workplace without bracket, saving space and lowering cost.

Underslung overhead monorail crane specifications: Product type: NLX overhead monorail crane, Lifting capacity: 1~20t, Span length: ≥ 6m, Working class: A5.Get your monorail crane design for free. WhatsApp: +86 150 3617 7583.

Single beam suspension monorail crane

Suspension overhead monorail crane
Suspension overhead monorail crane is a small light lifting equipment, economical price, which is widely used in the factory, warehouse, stockyard, etc.

Suspensions overhead monorail crane specifications: Product type: LX overhead monorail crane, Lifting capacity: 1~10t, Span length: 3~15m, Working class: A3.Get your monorail crane design for free. WhatsApp: +86 150 3617 7583.

Advantages of overhead monorail crane

Single beam monorail cranes are one of the most frequently used lifting crane for material handling. Single beam overhead has the following features and advantages:

On Steel frame fabrication of overhead monorail crane

  • 1) The steel frame of the overhead monorail crane is made of Q235B material steel which is widely used, the used steel along with material report and qualified certificates.
  • 2) The steel frame fabrication strictly follow national standard, main force weld line use double groove welding technique, all process with appearance inspection and nondestructive inspection, all welding engineer should be qualified with corresponding certificates.
  • 3) Main girder of the overhead monorail crane is fabricated with complete plate. In other words, the crane girder is all plates without any joints, offering a solid foundation for the safety of the overhead monorail crane.
  • 4) All plates for the production of the overhead monorail crane is processed with automatically cutting by CNC machine, preset camber.
  • 5) Steel with sand blasting, standard follow GB8923 SA2.5, it can increase the painting adhesion, and ensure the long time good looking of overhead monorail crane.
  • 6) Longitudinal waist weld of main beam by advanced automatic special plane welding, with good surface and very good welding quality.
  • 7) End carriage fabricated by Rectangular tube, without any welding and joint.
  • 8) Wheel installation by Bore type, it can ensure all the wheel at same level, increase the movement accuracy.

On mechanical systems of overhead monorail crane

Lifting mechanism of the overhead monorail crane has the advantages of compact structure, light weight, small size, and convenient operation and so on.

  • Gearbox. Single beam monorail crane with electric hoist reducer adopts helical gear three-stage gear, gear and gear shaft used 40Cr or 20CrMnTi steel forging processing, along with heat treatment, all with a rolling bearing, box shell made of cast iron manufacturing, assembly is close, dustproof and reliable
  • Drum. The rolling drum of the overhead monorail crane is made of cast iron or seamless steel pipe, which is connected with the reducer and the other end is supported by a rolling bearing at the front end of the conical motor. The roll shell is made of steel plate.
  • Hook. The hook of the overhead monorail crane is made of 20 steel forging, and is connected with a thrust ball bearing by hook beam and shell, the hook running freely.
  • Coupling. The torque of the motor is transmitted to the speed reducer through the claw type elastic coupling, and the coupling can absorb the load shock to obtain a smooth start.
  • Limit switch. To prevent faults caused due to hook up and down over the limit position, limiting device is arranged on the hoist, when the hook to the limit position, due to the overhead monorail crane drum device on the guide rope device drives the limit position controller action to automatically cut off power make the gourd to stop running.
  • Motor. The starting torque of the motor with larger starting torque, in order to adapt to the frequent direct start of the product, the maximum torque is 2.4~3 times of the rated torque.
  • To ensure the safe and reliable, all the electric hoist are equipped with a weight limiter.
  • Electric control system. The overhead monorail crane control box and operation button box, is with pressure loss, interlock, overload, overload alarm, etc.

Trolley traveling mechanism of the overhead monorail crane

The single girder crane electric hoist running mechanism for the electric trolley type. Gear reduction gear for 40Cr forging, along with quenching and tempering treatment, installed in the closed reduction box, all of the rolling bearing support, wall plate manufacturing, to ensure that the operation is flexible, easy to use, long life. The running mechanism of the trolley is equipped with frequency converter, stepless speed regulation, stable running, accurate positioning and comfortable operation.

Traveling mechanism of the overhead monorail crane

  • Single beam monorail crane operation structure is composed of a motor, a reducer, a wheel group composition, the wheel is a forged 45#. Along with heat treatment the hardness to tread Hb is equal to or more than 330 ~ 390, deep 20mm Hb is equal to or more than 260. Shaft and gear made of 45# or 40Cr with quenching and tempering treatment.
  • The single girder crane drivers for the new LDA type driving device, the device has simple structure, small volume, large starting torque, frequent starting, stable running speed, low noise, safe and reliable use, convenient installation and maintenance, beautiful appearance, etc.
  • The crane traveling mechanism of single girder crane with frequency converter, stepless speed regulation, smooth operation, accurate positioning, comfortable operation.

Above all is the advantages and characteristics of Dongqi overhead monorail crane. Contact us for more information on Dongqi overhead monorail crane now!

Monorail hoists for monorail material handling system

Dongi offers types of monorail hoists for monorail cranes.  Types of electric monorail crane hoists, ie., chain hoist , wire rope hoist, european hoist for monorail crane material handling system. Dongqi electric monorail crane hoist for sale .Check the monorail crane hoists now.

European monorail crane hoists

Fem crane and Fem hoist . The fem crane and fem hoist are hoists and cranes designed and produced based on FEM standards, also called the European crane and hoists. Check Dongqi FEM crane, fem overhead crane, fem gantry crane, FEM hoists, and hoist and crane parts now.

500kg-5 ton European  chain monorail crane hoist for

500 kg- 50 ton European chain monorail crane hoist

European wire rope monorail crane hoist

500 kg -80 ton European wire rope monorail crane hoists

Electric chain hoists

Electric chain hoist is a light and small material handling equipment with the capacity of 0.5 ton to 35 ton. Dongqi offers trolley chain monorail crane hoist and fixed type electic chain hoist, with different chain falls to meet your needs. Dongqi chain monorail crane hoist for sale at economical price now. Get your chain monorail crane hoist today.

Electric trolley chain hoist - Dongqi chain monorail crane hoist 500kg -35 ton eletric trolley monorail crane hoist Electric trolley chain hoist - Dongqi chain monorail crane hoist 500kg -30 ton manual trolley chain monorail crane hoist

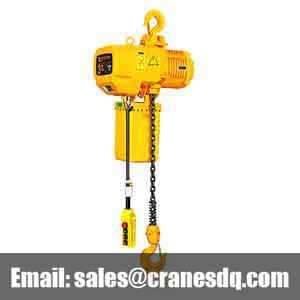

3 ton fixed type chain monorail crane hoist - Dongqi chain monorail crane hoist supplier 0.5-35 ton Fixed type/ Hook supesnion monorail crane hoist 5 ton low headroom chain monorail crane hoist - Dongqi electric hoist supplier 0.5 -30 ton low headroom monorail crane hoist

Wire rope hoists

Single speed wire rope monorail crane hoist CD Single speed wire rope monorail crane hoist Double speed wire rope monorail crane hoist MD Double speed wire rope eelectric hoist metallurgical wire rope monorail crane hoist Metallurgy wire rope monorail crane hoist
Mini electric wire rope hoist for sale Small electirc wire rope hoist for sale Low headroom wire rope monorail crane hoist Low headroom wire rope monorail crane hoist Explosion proof wire rope monorail crane hoist Explosion proof wire rope monorail crane hoist

Projects of Monorail material hanlding system of Dongqi

Get your custom monorail crane design

Parameters of monorail crane drawing
Overhead crane: S= Crane Span, H= Lifting height

In order to give you suitable monorail crane solution and specific monorail crane price promptly, please help our monorail crane engineer to confirm the following information as much as possible:

  1. Types of monorail crane: (Single or double girder? European type or Common one? )
  2. Capacity:
  3. Span:
  4. Height of Lift:
  5. Power supply: (3phase? Voltage? Hz?)
  6. Bay/ Travelling Length:
  7. Quantity:
  8. Operation: Through Pendant/Radio Remote/Cabin Control
  9. Indoor/Outdoor:
  10. Application (What are you planning to lift) :
  11. Environment (Normal/ hazardous) :
  12. Building drawing if possible:
  13. Location:
  14. Industry type: (Eg: Auto, steel, sugar, stone, etc)
  15. Rail Existing/New: (Size in case of Existing)
  16. Number of Cranes in bay:
  17. Existing Structure/New Structure:
  18. Your full company address and contact details:

If you do not know about how to select the monorail crane, please feel free to leave us a message or email to sales@cranesdq.com. WhatsApp/ WeChat: +86 150 3617 7583. The reply of our monorail crane engineer will be given within 24 hours. Get your custom design monorail crane.
