Double girder overhead crane with hook – Hook overhead crane of DQCRANES Overhead crane with hook for 5 to 550 T material handling, used in various industries, with working class of A4 to A7. Customized hook overhead crane is available from DQCRANS.

Hook crane: Double girder overhead crane with hook for general use

Hook crane: Double girder overhead crane with hook for general use

The hook overhead crane can be used to lift loads from 5 tons to 550 tons, which is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special designed electric hoist or winch trolly  in special operations. Check Dongqi hook double girder overhead crane now.

Overhead crane with hook introduction

As one of the most frequently used material handling equipment, overhead crane with hook is a double girder overhead crane with the hook as the lifting tool. The lifting capacity of the hook overhead crane is 5 to 550 tons, and the working class is A4 to A7. The specifications of the hook overhead crane is as follow:

Overhead Crane Product Type QD
Hook Crane Lifting Capacity 5~550t
Hook Crane Span Length  10.5~35.5m
Hook Crane Working Class A4~A7
Hook Crane Ambient Temperature -20~40℃

Application of overhead crane with hook

The hook overhead crane is widely used to load and transport normal weight in the fixed crossing space and in various special purpose hoists in special operations. However, it is not allowed to be used in combustible, explosive or corrosives environment.

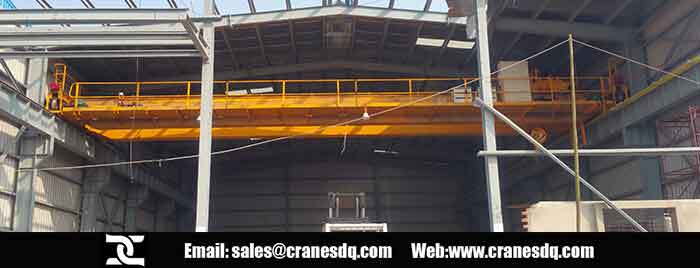

Double girder overhead crane with hook installation in Pakistan

Double girder overhead crane with hook installation in Pakistan - Dongqi overhead crane project

Advantages of overhead cranes with hook

  • Compact structure, new style, nice appearance
  • Good usability and long working life
  • High capacity and high working class
  • Flexible operation and wide application
  • High safety and reliability
  • Competitive quality and price

Crane hook

Crane hook is one kind of material handling devices, a tool used to lift and move loads. The crane hooks can be classified into single hook, double hooks, C shape hooks, and laminated plate hook, etc.

The single hook can be manufactured easily and are widely applied to the cranes to lift the loads no more than 75 tons.

The double hooks is usually applied to large capacity cranes for the good loading conditions.

The laminated plate hook is a load hook, assembled of multi-sheets or individual segments, connected by rivets. The laminated plate hook is mainly used for the transportation of molten liquid matters in casting ladles, and other large loads.

Double girder overhead travelling  crane with hook - Dongqi overhead crane project

Double girder overhead travelling  crane with hook - Dongqi overhead crane project

Does on slinging a load onto a crane hook

  • Make sure the load weight.
  • Choose the right sling for the loading work according to the loading requirements.
  • Inspect the lifting equipment before and after lifting work and tag defective slings and dispose of damaged ones.
  • Make clear and standard signals to the crane operator by the only one slinger who is in charge of the lift.
  • Warm all people and make them out of the load area before lifting.
  • Protect your hands and fingers from pinching between the sling and loads.
  • Before lifting, make sure the load is high enough to clear all objects before signaling for the crane to move.
  • Step away and walk ahead of the moving load and warn people to keep clear.
  • Use guide ropes to prevent rotation or other uncontrolled motion.
  • Set down loads on blocking.
  • Hang slings on racks or store according to manufacturer’s direction when not in use.

10 ton double girder overhead crane - Dongqi overhead crane turnkey project for Bangladesh

10 ton double girder overhead crane - Dongqi overhead crane turnkey project for Bangladesh

Hook overhead crane parts and components

The hook double girder overhead crane is consisted of crane bridge, crane traveling mechanism, trolley, electrical equipment, crane hook, etc. The main parts and components of the overhead hook cranes are presented for your reference. More cranes parts please contact us.

Electric winch crane parts: Main girder
Hook Crane Parts: Main girder

overhead hook crane parts:end carriage
Hook Crane Parts: End carriages

overhead hook crane parts:winch trolley
Electric winch with trolley frame

overhead hook crane parts:drum
Hook Crane Parts:Winding drum

overhead hook crane parts:wire rope
Hook Crane Parts: Wire rope

overhead hook crane parts:hook

Hook Crane Parts: Hook

overhead hook crane parts:brake
Hook Crane Parts: Braking system

overhead hook crane parts:bearing
Hook Crane Parts: Bearings

overhead hook crane parts:wheel
Hook Crane Parts: Wheels

overhead hook crane parts:motor
Hook Crane Parts: Lifting motor

overhead hook crane parts:travelling motor
Hook Crane Parts: Travelling motor

overhead hook crane parts:cross travelling
Hook Crane Parts: Cross travelling

overhead hook crane parts:lifting mechanism
Hook Crane Parts: Lifting mechanism

overhead hook crane parts:crane travelling
Hook Crane Parts: Crane travelling

overhead hook crane parts:electrics cabinet
Hook Crane Parts: Electrics & cabnet

overhead hook crane parts:converter
Hook Crane Parts: Converter

overhead hook crane parts: festoon cable
Hook Crane Parts: Festoon cable

overhead hook crane parts:slide wire busbar
Hook Crane Parts: Slide wire

overhead hook crane parts:remote control
Hook Crane Parts: Remote control

overhead hook crane parts:lifting limit switch
Lifting Limit switches

overhead hook crane parts:travelling limit switch
Hook Crane Parts: Traveling Limit switches

overhead hook crane parts:overload limit
Hook Crane Parts: Overload limit

overhead hook crane parts:bumper
Hook Crane Parts: Buffer

Hot double girder overhead crane designs of Dongqi Crane

Double girder overhead crane is designed to handle heavy loads and objects over 20 tons, thus, a double girder overhead crane also refers to a heavy duty overhead crane. Hook double girder overhead crane is one of the mostly used heavy material handling equipment with the lifting capacity from 5 ton to 550 ton, working class up from A4 to A7.

Up to 550 ton double girder overhead cranes of various crane designs are for sale good price. Types of double girder overhead cranes are available, such as, hook overhead crane, gab bucket overhead crane, electromagnetic overhead crane, soaking pit overhead crane, etc. Contact us to get your double girder overhead crane now.

European Style Double Girder overhead crane

European Double Girder Overhead Crane
FEM double girder overhead crane meets all the European crane standards with CE cerfiticates.
Fem double girder eot crane specifications:Crane Capacity of 5~ 80 ton,Span length:10.5~35.5m, Working class:A4~A7,

Double girder electric hoist overhead crane

Electric Hoist Double Girder Overhead Crane
Electric hoist double gider overhead crane is widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, stock ground, and power station, textile industry and food industry.
Double girder eot crane specifications:Capacity:5~63 ton,Span Length:8m~32m,Working Class:A3~A5,

overhead crane with hook - Dongqi double girder overhead crane

 Electric Winch Double Girder Overhead Orane
General use overhead winch crane is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.
Double girder overhead  winch crane specifications:Capacity:5-550 ton, Span length:10.5~35.5m, Working class:A4~A7,

Explosion proof double girder overhead crane

Explosion Proof Double Girder Overhead Crane
Explosion proof overhead crane is designed for explosive gas atmospheres with explosion-proof electrical equipment.
EX-proof double girder eot crane specifications:Capacity:5~75 ton, Span Length:10.5~31.5m,Working Class:A4, A5,

Electromagnetic crane - Double girder overhead crane of Dongqi

Electromagnetic Double Girder Overhead Crane
The electromagnetic overhead crane is used in metallurgy factory or outdoor place to load and transport electromagnetic black metal materials, such as , steel ingot, merchant steel and pig iron, etc.
Electromangetic double girder eot crane specifications:Capacity:5~32 ton,Span Length:10.5~31.5m,Working Class:A5, A6,

Double trolley overhead crane- Dongqi double girder overhead crane

Double Trolleys Double Girder Overhead Crane
The double trolley overhead crane is used to lift long and big loads.
Double girder eot crane specifications:Capacity:(2.5+2.5)~(200+200) ton, Span length:10.5~35.5m,

Insulation crane - Double girder overhead crane of Dongqi

Insulation Double Girder Overhead Crane
The insulation overhead crane is used to handle electrolyse non-ferrous metals such as magnesium, aluminum.
Insulation double girder eot crane specifications:Capacity:5~50 ton,Span Length:10.5~31.5m,Working Class:A6,Ambient Temperature:-25~50℃,

Grab crane - Double girder overhead crane of Dongqi

Grab Bucket Double Girder Overhead Crane
Grab overhead crane is widely used in power station, storage, workshop, and port to load and unload scattered objects.
Grab bucket double girder eot crane specifications:Capacity:5~25 ton ,Span Length:10.5~34.5m,Working Class:A6,

Ladle overhead crane

Ladle Double Girder Overhead Crane
Ladle overhead crane are widely used in the smelting industry to convey, pour and charge the liquid hot metal in the process of smelting.
Double girder eot crane specifications:Capacity:5~74 ton,Span Length:10.5~31.5m,Working Class:A7,Ambient Temperature:-10~60℃,

Double girder overhead hook crane for general use cases

Double girder hook bridge crane for sale  - Dongqi overhead crane turnkey project

Double girder hook bridge crane for sale  - Dongqi overhead crane turnkey project

Overhead travelling hook overhead crane turnkey project of Dongqi Crane

Overhead travelling hook overhead crane turnkey project of Dongqi Crane

Custom designed hook double girder overhead crane turnkey project - Dongqi hook crane

Custom designed hook double girder overhead crane turnkey project - Dongqi hook crane

Inquiry overhead crane

Inquiry overhead crane- Send your overhead crane inquiry with the main parameters

Overhead crane: S= Crane Span, H= Lifting height

In order to give you suitable overhead crane solution and specific overhead crane price promptly, please help our overhead crane engineer to confirm the following information as much as possible:

  1. Types of overhead crane: (Single or double girder? European type or Common one? )
  2. Capacity:
  3. Span:
  4. Height of Lift:
  5. Power supply: (3phase? Voltage? Hz?)
  6. Bay/ Travelling Length:
  7. Quantity:
  8. Operation: Through Pendant/Radio Remote/Cabin Control
  9. Indoor/Outdoor:
  10. Application (What are you planning to lift) :
  11. Environment (Normal/ hazardous) :
  12. Building drawing if possible:
  13. Location:
  14. Industry type: (Eg: Auto, steel, sugar, stone, etc)
  15. Rail Existing/New: (Size in case of Existing)
  16. Number of Cranes in bay:
  17. Existing Structure/New Structure:
  18. Your full company address and contact details:

If you do not know about how to select the overhead crane, please feel free to leave us a message or email to sales@cranesdq.com. The reply of our overhead crane engineer will be given within 24 hours. Get your custom design overhead crane.
