3 ton hoist for sale, 3 ton hoist good price, Types of 3 ton hoists

14 Dec, 2016

3 ton hoist for sale good price. Types of 3 ton hoists for sale, Good hoist price. Dongqi 3 ton hoists offering includes 3 ton electric cable hoist and electric chain hoist, single / double speed 3 ton hoist, Explosion proof 3 ton hoist, etc.Get yourcustomized electric hoist now.JyCHenan Dongqi Machinery Co., Ltd

As an hoist manufacturer, supplier and exporter, Dongqi Hoist and Crane is able to provide you types of hoist, manual hoist, electric hoist, cable hoist, chain hoist, explosion proof hoist, single speed hoist, double speed hoist, etc., which can meet the various material handing requirements in various industries. Dongqi Hoist and Crane is able to provide you types of hoists with lifting capacity from 0.25 ton to 100 ton with custom features. Dongqi CE electric hoist for sale with good price.JyCHenan Dongqi Machinery Co., Ltd

Electric chain hoist3 ton hoist- electric chain hoist

Chain electic hoistJyCHenan Dongqi Machinery Co., Ltd

Electric chain hoist is a light and small lifting equipment for material handling. Electric chain hoist is mainly consisted of motor, transmission mechanism and chain wheel, etc. Electric chain hoists from DQCRANES have the features of beautiful outlook, solid durability, and international technology, etc. The inside gears of electric chain hoist are hot quenched which increases the wear resistance of the gear and toughness. The lifting capacity of electric chain hoist is 0.5 to 35 ton, and the working class is M3 or M4. Chain 3 ton hoist main parameters are as follow: JyCHenan Dongqi Machinery Co., Ltd

Chain3 ton hoist type DHT,WBH
Electric Hoist Lifting Capacity 0.5t~35t
Electric Hoist Lifting Height 3~50m
Electric Hoist Working Class M3,M4
Ambient Temperature -25~40℃

Electric cable hoist3 ton hoist - cd electric hoist

Cable electric hoistJyCHenan Dongqi Machinery Co., Ltd

Electric cable hoist is a type of material handling equipment, installed on a single beam crane, linear curve strander beams or it can be used at the hoisting mechanism of double beam crane, gantry crane, linear crane for material handling by industrial and mining enterprises, railways, and warehouses, etc. The lifting capacity of the electric cable hoist and electric rope hoist is 0,5 to 33 ton and the working class is M3 and M4.The cable 3 ton  hoist parameters are as follow: JyCHenan Dongqi Machinery Co., Ltd

Cable 3 ton hoist type CD1
Electric Hoist Lifting Capacity 0.5~32t
Electric Hoist Lifting Height 6~50m
Electric Hoist Working Class M3,M4
Ambient Temperature -25~40℃

Mini electric hoist

3 ton hoist- small electric hoist JyCHenan Dongqi Machinery Co., Ltd

Small electric hoistJyCHenan Dongqi Machinery Co., Ltd

Mini electric hoist or civil electric hoist is a light lifting equipment, used for material handling in various applications to lift and transport loads under 1000kg. Mini electric hoist or civil electric hoist has the lifting capacity of 0.2 to 3 ton and the working class is M3. The lifting speed of mini electric hoist is up to 10 m/min, and the designed steel wire rope can reach up to 12 meters which can be customized. The small 3 ton hoist parameters are as follow: JyCHenan Dongqi Machinery Co., Ltd

Mini 3 ton hoist type PA200~PA999
Electric Hoist Lifting Capacity                        0.2~1t
Electric Hoist Lifting Height 3~24m
Electric Hoist Working Class M3
Ambient Temperature -25~40℃

Hand chain hoist

Hand hoist - 3 ton hoist JyCHenan Dongqi Machinery Co., Ltd

Manual chain hoist / chain block is one of the most economical material handling equipment with features of hand operation, simple structure, cost-effective, widely application, etc. What’s more, the spark resistant features, such as, stainless steel, bronze hooks, chains, wheels, etc are available to manual chain hoist / chain block. The lifting capacity of manual chain hoist / chain block is 0.5 to 100 ton,  The parameters of the manual 3 ton hoist is as follow: JyCHenan Dongqi Machinery Co., Ltd

Manual 3 ton hoist type         Manual Chain Hoist
Electric Hoist Lifting Capacity                                                   0.5~100t
Electric Hoist Lifting Height 0.5~3.5m
Electric Hoist Working Class
Ambient Temperature -25~40℃

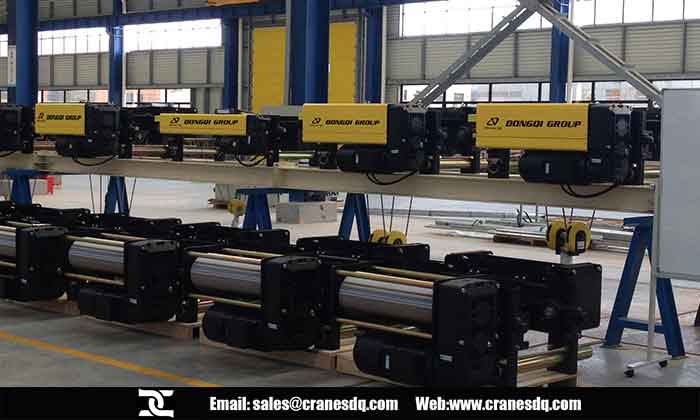

FEM electric hoist

FEM hoist - 3 ton hoistJyCHenan Dongqi Machinery Co., Ltd

The FEM electric hoist is a newly developed material handling equipment with advanced design technology according to the FEM standards and other regulations. The new serial of FEM electric hoist is environment-friendly, energy saving and cost-effective which ranks top among similar products. The lifting capacity of the European stype FEM electric hoist is 1 to 80 tons and the working class is M5 and M6. Customized FEM electric hoist are available. FEM 3 ton hoist parameters are as follow:JyCHenan Dongqi Machinery Co., Ltd

FEM 3 ton hoist type ND
Electric Hoist Lifting Capacity 1~80t
Electric Hoist Lifting Height 6~50m
Electric Hoist Working Class M5, M6
Ambient Temperature -20~40℃

CD 3 ton electric hoist

3 ton hoist  - cd electric hoistJyCHenan Dongqi Machinery Co., Ltd

CD electric hoist- single speed electric hoistJyCHenan Dongqi Machinery Co., Ltd

Electric wire rope hoist is a type of material handling equipment, installed on a single beam crane, linear curve strander beams or it can be used at the hoisting mechanism of double beam crane, gantry crane, linear crane for material handling by industrial and mining enterprises, railways, and warehouses, etc. The lifting capacity of single speed electric wire rope hoist is 0,5 to 33 ton and the working class is M3 and M4. CD 3 ton hoist main parameters are as follow:JyCHenan Dongqi Machinery Co., Ltd

CD1 electric  hoist
CD 3 ton hoist specification
Hoisting speed m/min 8
Travel speed m/min 20、30
Lifting motor Type ZD1 32-4/4.5kw
Operation motor Type ZDY1 12-4/0.4kw
Track   20~32c
Wirerope Dia.(mm) 13
Specification 6×37+FC
Hoisting height m 6 9 12 18 24 30
Min curvature radius m 2.0 2.0 2.5 2.5 3 4
Weight(Operation type) kg 281 297 354 390 420 451
Weight(Stationary type) kg 222 236 250 284 312 340

MD1 3 ton Electric Hoist

3 ton hoist - md electric hoistJyCHenan Dongqi Machinery Co., Ltd

MD electric hoist- Double speed electric hoistJyCHenan Dongqi Machinery Co., Ltd

MD electric hoist is a type of double speed electric hoist, which is a small-sized material handling equipment. The electric 3 ton hoist can be installed on the single girder, bridge cranes, gantry cranes, jib cranes for material handling. As one of the commonly used material handling equipment, The double speed 3 ton electric hoist is usually used in factory, mining, railway, port, and storage, etc.JyCHenan Dongqi Machinery Co., Ltd
The electric hoist has two speed options which coordinate with each other to realize the efficient material handling work with precision. The lifting capacity of MD electric hoist is 0.5 – 33 ton and the working class is M3 and M4. Custom MD electric hoist is avaialable. The MD 3 ton hoist specifications are as followJyCHenan Dongqi Machinery Co., Ltd

3 ton hoist specifications
Hoisting speed m/min 0.8/8
Travel speed m/min 20、30
Lifting motor Type ZDS1 22-0.2/1.5kw
Operation motor Type ZDY1 11-4/0.2kw
Track   16~28b
Wire rope Dia.(mm) 7.4
Specification 6×37+FC
Hoisting height m 6 9 12 18 24 30
Min curvature radius m 1.5 1.5 2 2 3 4
Weight(Operation type) kg 164 174 199 215 231 247
Weight(Stationary type) kg 132 140 147 162 177 192

3 ton BCD1 Explosion Proof Wire rope Electric Hoist

BCD 3 ton hoist-  explosion proof electric hoistJyCHenan Dongqi Machinery Co., Ltd

BCD - explosion proof electric hoistJyCHenan Dongqi Machinery Co., Ltd

BCD1 explosion proof electric hoist is a specially designed material handling equipment with the features of explosion proof. The explosion proof is designed and manufactured according to GB3836-2000 provisions and international regulations, with the explosion proof mark of D II BT4, and D II CT4, which can be supplied to applications that has the level of II A, II B, II C grade, the temperature sub-groups T1-T4 group of combustible gas, steam and air from the explosion gas mixtures in a zone, zone 2 areas. The lifting capacity of explosion proof electric hoist is 0.5 to 16 tons and working class of explosion proof hoist is M3.The BCD 3 ton hoist main parameters are as follow:JyCHenan Dongqi Machinery Co., Ltd

BCD  Explosion Proof Wire rope Electric Hoist
BCD explosion proof 3 ton hoist specifications
Hoisting speed m/min 8
Travel speed m/min 20、30
Lifting motor Type BZD1 32-4/4.5kw
Operation motor Type BZDY1 12-4/0.4kw
Track   20~32c
Wirerope Dia.(mm) 13
Specification 6×37+FC
Hoisting height m 6 9 12 18 24 30
Min curvature radius m 2.0 2.0 2.5 2.5 3 4
Weight(Operation type) kg 281 297 354 390 420 451
Weight(Stationary type) kg 222 236 250 284 312 340

Explosion Proof Wire rope Electric Hoist

Explosion proof hoist- 3 ton hoistJyCHenan Dongqi Machinery Co., Ltd

BMD1 explosion proof wire rope electric hoist is a specially designed electric hoist for hazardous environment where is full of dust, dangerous gas, etc., to ensure the material handling safety. The BMD 3 ton hoist main parameters are as following:JyCHenan Dongqi Machinery Co., Ltd

BMD1 Explosion Proof Wire rope Electric Hoist

BMD1 explosion proof wire rope 3 ton hoist specificationsJyCHenan Dongqi Machinery Co., Ltd

Hoisting speed m/min 0.8/8
Travel speed m/min 20、30
Lifting motor Type BZDS1 32-0.4/4.5kw
Operation motor Type BZDY1 12-4/0.4kw
Track   20~32c
Wire rope Dia.(mm) 13
Specification 6×37+FC
Hoisting height m 6 9 12 18 24 30
Min curvature radius m 2.0 2.0 2.5 2.5 3 4
Weight(Operation type) kg 311 327 384 420 450 481
Weight(Stationary type) kg 252 266 280 314 342 370

Metallurgical hoist

YH metallurgical hoistJyCHenan Dongqi Machinery Co., Ltd

Metallurgical electric hoist introduction is a type of material handling equipment, especially designed for the application in metallurgy environment for handling molten metal, etc. Metallurgical electric hoist is equipped with dual brake, double spacing, insulation boards, and other protections, with the working class of M3. The lifting capacity of metallurgical electric hoist is 1 to 20 tons.The main parameters of 3 ton metallurgical hoist are presented as follow:JyCHenan Dongqi Machinery Co., Ltd

YH Metallurgical Electric Hoist (Lifting single speed)JyCHenan Dongqi Machinery Co., Ltd

YH metallurgical 3 ton hoist specifications
Hoisting speed m/min 8
Travel speed m/min 20
Lifting motor Type ZD1 31-4/3kw
Operation motor Type ZDY1 12-4/0.4kw
Track   20a~30c
Wirerope Dia.(mm) 11
Specification 6×37+IWR
Hoisting height m 9 12 15 18 20
Min curvature radius m 2 3 4 5 6
Weight(Operation type) kg 439 457 479 494 505
Weight(Stationary type) kg 409 427 449 464 475
YH Metallurgical Electric Hoist (Lifting double speed)

YH metallurgical 3 ton hoist specificationsJyCHenan Dongqi Machinery Co., Ltd

Hoisting speed m/min  2/8
Travel speed m/min 20
Lifting motor Type ZDD 41-4/16 4.5/1.1kw
Operation motor Type ZDY1 12-4/0.4kw
Track   20a~30c
Wirerope Dia.(mm) 13
Specification 6×37+IWR
Hoisting height m 9 12 15 18 20
Min curvature radius m 2 3 4 5 6
Weight(Operation type) kg 521 540 565 582 595
Weight(Stationary type) kg 490 510 533 550 560
