Wire rope hoist: 0.5 ton -32 ton rope hoist/ wire hoist for sale

04 May, 2017

Wire rope hoist for sale. 0.5 ton -32 ton rope hoist/ wire hoist for sale. Dongqi offers types of wire rope hoists, such as, single/ double speed wire rope host, explosion proof wire rope hoist, metallurgy wire rope hoist, European FEM standard wire rope hoist, etc. Which type of wire rope hoist, do you need?

Wire rope hoist for general use

Wire rope hoist

Electric wire rope hoist is a type of material handling equipment, installed on a single beam crane, linear curve strander beams or it can be used at the hoisting mechanism of double beam crane, gantry crane, overhead crane, linear crane for material handling by industrial and mining enterprises, railways, and warehouses, etc. More information, please check Dongqi wire rope hoist cast study.

Wire rope hoist basics helps you to find out how to select wire rope hoist, how to check the wire rope hoist before use, how to install and maintain your wire rope hoists, etc. As a wire rope hoist manufacturers and suppliers, Dongqi will help you to find the most suitable electric hoist design at cost-effective wire rope hoist price. Contact to get your wire rope hoist now by email to sales@cranesdq.com.

Basics of wire rope hoists

Wire rope hoists designs vary according to the types of wire rope hoists, and the basics of standard wire rope hoists are the same.

The proprietary series built, rope hoist unit would be selected from our extensive range of units which have a worldwide reputation for reliability, modern design, safety and the very latest Electric Wire Rope hoists manufacturing techniques.

  • The modular design forms a very efficient, compact visually aesthetic unit.
  • The rope hoist transmission train is a direct drive type with no coupling.
  • The wire rope drum is mounted in maintenance free bearings located within the rope hoist bearer frame. The drum is accurately machine grooved to accommodate the rope hoisting wire rope in one layer. And is designed to leave a minimum of 3 (three) turns on the drum when maximum lift height is reached.
  • A wire rope guide is provided to prevent slack wire rope and to smoothly guide the wire rope onto the drum.
  • The wire rope is securely attached to the drum with 3 (three) wire rope clips.
  • The bottom hook block is of the safety type, having fully guarded deep grooved sheaves, running in sealed ball bearings. The hook is a forged steel single point “C” Type, mounted on a ball thrust race and fitted with a spring return safety catch.

Types of wire rope hoists

In China, there are many rope hoists manufactures who provide standard electric wire rope hoists all over the world.
The wire ropes, as a matter of fact, are flexible and composed of several steel or fiber wire, the quality of which are necessary to be measured. A sample wire rope specifications are of l6×37 or 6 x19, which indicates its number of standard x number of wires per stand. In China, there are a large number of firms, factories and companies which can offer the standard electric wire rope hoist with quality wire ropes.

As a hoist manufacturer and supplier, Dongqi Hoist and Crane offers types of electric hoists for customers, mainly electric chain hoist and electric wire rope hoist, etc. Dongqi electric wire rope hoists offering includes single / double speed hoist, low headroom hoist, explosion proof hoist, safety hoist, etc. The hot electric wire rope hoists are presented for your referencef in the following:

Single speed wire rope electric hoist

CD Single speed wire rope electric hoist

Single speed wire rope hoist specifications:
  • Capacity of wire rope hoist: 0.5 to 32 ton
  • Hoisting speed (m/min): 8
  • Travel speed (m/min): 20、30
  • wire rope Dia.(mm): 7.4 , Specification 6×37+FC
  • Hoisting height(m): 6 9 12 18 24 30
Inquire electric hoist now.

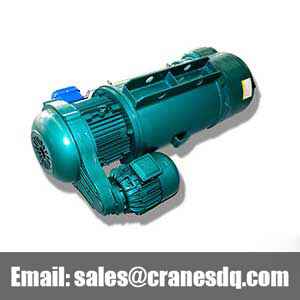

Double speed wire rope electric hoist

MD Double speed wire rope electric hoist

Double speed wire rope hoist specifications:
  • Capacity of wire rope hoist: 0.5 to 32 ton
  • Hoisting speed (m/min): 0.8/8
  • Travel speed (m/min): 20、30
  • wire rope Dia.(mm): 7.4 , Specification 6×37+FC
  • Hoisting height(m): 6 9 12 18 24 30
Inquire electric hoist now.
Mini electric wire rope hoist for sale

Small electirc hoist for sale

Small / Mini wire rope hoist specifications:
  • Product Type: PA200~PA999
  • Capacity of wire rope hoist:0.2~1t
  • Lifting height of wire hoist: 3~24m
  • Working Class: M3
  • Ambient Temperature:-25~40℃
  • MOQ:20 sets
Inquire electric hoist now.
metallurgical wire rope electric hoist

Metallurgy wire rope electric hoist

Metallurgy wire rope hoist specifications:

  • Hoist Type: YH
  • Capacity of wire rope hoist: 1~20t
  • Lifting Height of wire hoist: 6~18m
  • Working Class: M5
  • Ambient Temperature: -10℃~+60℃
Low headroom wire rope electric hoist

Low headroom wire rope electric hoist



Low headroom wire rope hoist specifications:
  • Capacity of wire rope hoist: 0.5 ton -20 ton, 80 ton
  • Hoisting speed (m/min): 0.8/8
  • Travel speed (m/min): 20、30
  • wire rope Dia.(mm): 7.4 , Specification 6×37+FC
  • Hoisting height(m): 6 9 12 18 24 30
Inquire electric hoist now.
Explosion proof wire rope electric hoist

Explosion proof wire rope electric hoist.

Explosion proof wire rope hoist specifications:
  • Capacity of wire rope hoist: 0.5 to 32 ton
  • Hoisting speed (m/min): 0.8/8
  • Travel speed (m/min): 20、30
  • Wire rope Dia.(mm): 7.4 , Specification 6×37+FC
  • Hoisting height(m): 6 9 12 18 24 30
Inquire electric hoist now.
Fem European wire rope electric hoist

FEM wire rope electric hoist

European standard wire rope hoist specifications:
  • Capacity of wire rope hoist: 1~20 ton, 1-80ton
  • Lifting height of wire hoist: 6~18m
  • Lifting Speed: 0.66/4—1.6/10m/min
  • Working Class: M5
  • Travelling Speed: 2-20m/min
  • Ambient Temperature: -20~40℃
Inquire electric hoist now.

Electric rope hoist is useful for heavy load lifting, and the electric rope hoist is a superior safe and favorable device, which offers the good investment for your business. Many electric rope hoist manufacturers in China provides many advantages for your workshops in terms of material handlings.

Custom designed electric wire rope hoists

Single speed wire rope electric hoist

Square electric wire rope hoist

  • Capacity of electric wire rope hoist: 6t - 100t
  • Working class of electric wire rope hoist: M3-M6
  • Application of electric wire rope hoist: Factory, mining, railway, yard, warehouse, and others, etc.
Inquire electric hoist now.
metallurgical wire rope electric hoist

Conjoined wire rope hoists with two hooks

Conjoined wire rope hoists with two hooks makes the simultaneous lifting of two hooks possible and also make the single hook lifting possible.

The conjoined wire rope hoists is often used for the simultaneous lifting of two hooks with a steel bar welded between the two wire rope hoists, which make the distance of the two hoists and lifting hooks fixed, without the function of power control and transmission.

Low headroom wire rope electric hoist

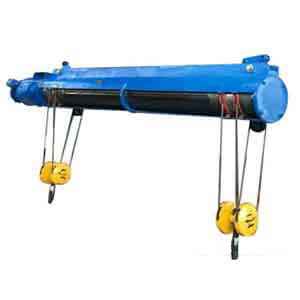

Shared drum wire rope hoists with two hooks

Shared drum wire rope hoists is two wire rope hoists placed at each side of a hoist drum with two hoist hooks can be used at same time or separately. The Shared drum wire rope hoists with two hooks is for long objects handling with high lifting speed, which is more than 10 m/ m and lifting , which can be customized.

  • Capacity of electric wire rope hoist :0.5T、1T、2T、3T、5T、10T
  • Lifting height of electric wire rope hoist :H=6m-24m
  • Distance between hooks of electric wire rope hoist:1.2m≤L≤5m
Noted: The two hooks can be used separated but when use the single hook, the other hook has be to lift up to avoid collision and accident. If the distance of two hook is narrow, please pay close attention on hoist operation to avoid twining.
Inquire electric hoist now.
Explosion proof wire rope electric hoist

Coaxial wire rope hoists with two hooks

Coaxial wire rope hoists with two hooks is used for long object or loads handling, whichis a new modification of two CD wire rope hosts, which is connected by the same axial to make the simultaneous movement of two hooks.

  • Capacity of electric wire rope hoist:2*10T、2*16T、2*32T
  • Lifting height of electric wire rope hoist:H=6m-24m
  • Distance between two hooks of electric wire rope hoist :1.2m≤L≤7m
  • Speed of electric wire rope hoist: Single speed as your request.

Coaxial wire rope hoists with two hooks is nonstandard design and need to contact us to confirm the details.

Fem European wire rope electric hoist

Linked axial wire rope hoists

Linked axial wire rope hoists is used for the simultaneous material handling at dual speeds which is composed of two double speed MD wire rope hoists, connected by the linked axials. The distance of the two hooks is usually around 3000 mm, and widely used for the lifting up and down of small water gates.

  • Capacity of electric wire rope hoist:2*10T、2*16T、2*32T
  • Lifting height of electric wire rope hoist:H=6m-24m
  • Distance between two hooks of electric wire rope hoist :1.2m≤L≤7m
  • Speed of electric wire rope hoist: Duel speeds is as per your request.
Inquire electric hoist now.

How to select an appropriate electric wire rope hoist?

A rope hoist is equipment which used for lifting loads from one place to another with the support of drum or lift-wheel having a wire rope around it. The load is connected to rope hoist by means of lifting hook.
There are two types of rope hoists by means of power supplying.

  • Manually operated rope hoist and
  • Electric wire rope hoist.

Electric wire rope hoistis powered by an electric motor to make the work of lifting heavy goods easily. Moreover, it is quite safe and convenient. About 80% firms using electric wire rope hoist instead of manual rope hoist because of its convenience. . Generally, A perfect standard should like 6*37 or 6*19 this indicates its number of standard*number of wires per stand. Today, we have abundance firms which offer the standard electric wire rope hoists manufacturers in China.These types of rope hoists are beneficial for your business so, spending money on electric wire rope s is the best investment for your business.

Features of electirc wire rope hoists

  • It is convenient and weather proof
  • It should be smooth to service electrical control system and additional chain for higher height lifting.
  • There should rope hoisting gear box; motor as well as a break is one single compact unit to get rid of any adverse problems.

Benifits of electric wire rope hoists

  • Superior quality and heavy duty wire rope hoists
  • Easy as well as potent load handling
  • Beneficial for crane modification and factory reconstruct
  • DC Disk motor brake
  • Heavy-duty fan excellent motors
  • High-quality wire rope for wear resistance
  • Cost-effective price
  • IP55 rated for outdoor purpose
  • Flexible models, providing a wide range of choice as per exertion
  • Comprehensive, compact design
  • Easily available in the market
  • Saves your time because it does a work in a short period, which takes hours to accomplish

Electric rope hoist installation tips

The length of each rope hoist wire rope should be noted which will be presented on the installation lay out of the electric rope hoist . Count the number of wire ropes also is an effective way.

  • The diameter of the wire rope also needs your attention. There will ideally be a crosshead data plate on the top of the car which should show the diameter of the rope. Alternatively that diameter can also be measured with the help of a calliper or micrometre.
  • Other important factors include the stranding and construction of the wire rope. Stranding in this context considering the number of strands per wire rope and the number of wires per strand. For example if there is an 8 strand wire rope with 19 wires per strand then the wire has a 8 x 19 stranding.
  • The wire rope hoists also differs when it comes to the lay. The lay of the wire rope can be right regular or even right Lang.
  • Depending on the application of the electric rope hoist you may want to check the grade or tensile strength of the wire rope. The higher the strength of the wire rope, the higher the grade. High grade ones are often used on high rises. These may also be useful in high speed rope hoisting conditions.
  • The breaking load can be found on the cross nameplate. The breaking load can range from several values; for e.g. it could be 6550 kg or 14500 pounds.

Hoists parts of electric wire rope hoist

Wire rope electric wire rope hoist parts: Motor

Lifting motor &Travelling motor
Manufactured by Nanjing Special Motor factory, Chinese best motor brand.
Special designed Squirrel-cage motor for the electric hoist.
Maintenance free. Insulation class F.
Protection class IP54.
Electromagnetic disc type brake system
More on electric wire rope hoist parts: Motor

Electic trolley- Wire rope electric wire rope hoist parts

Electric trolley
Alloy gear and wheels, 125% testing load of the rated capacity. Braking method please see the travelling motor details.
More on electric wire rope hoist parts: electric trolley

Gear box - Wire rope electric wire rope hoist parts

Gear box
Zhong Rui brand
Totally enclosed type with Splash Lubrication, gear box shell pressure casting

Winding drum- Wire rope electric wire rope hoist parts

Winding drum
Dongqi Crnae manufacture. Seamless Q235 B steal tube
More on electric wire rope hoist parts: winding drum

Rope guide - Wire rope electric wire rope hoist parts

Rope guide
Installed on the winding drum to guide the wire rope, nodularcastiron
More on electric wire rope hoist parts: rope guide

Limiting stoper - Wire rope electric wire rope hoist parts

Limiting stopper
For the vericatial lifting stopper
More on electric wire rope hoist parts: limiting stoper

Control- Wire rope electric wire rope hoist parts

Control
Pendant control with cable. Six direction button, including up and down, left and right, forward and backward. Protection class IP 65
More on electric wire rope hoist parts: Pendant control

How to use an electric wire rope hoist

Electric wire rope hoistare composed of a electric motors, Gearboxes, Wire rope drum with wire rope guides, electric panel and large wire wire rope connected to a hook.Electric wire rope hoistsare used to carry large objects weighing between 500 Kgs and 20 tons in various conditions like severe heat while welding, over the burners and furnaces or in acidic atmosphere. Before purchasing and using a wire rope hoist, you must get the requirement clear and place an order accordingly. Often you will need to be instructed and trained in the use of the wire rope hoistby a rope hoist provider or by someone knowledgeable about rope hoist operations.Instructions

  • Voltage Check: Check to make sure the voltage of the electric wire rope hoist and the motor correspond with the voltage of the power supply you plan to use. Connect the rope hoist to the power supply only if the voltage will support it. Voltage is proportional to the speed of the rope hoist. Even in case of minor difference the speed obtained will be different than mentioned in the manual.
  • Check the lubrication:Make sure the gearboxes are filled up to the mark by recommended oil i nrope hoist and the end carriages of theEOT Crane.
  • Test buttons:Test your control switches before your electric rope hoist is carrying a load. Test your emergency stop button by pressing it, and making sure the wire rope hoistceases movement. You can release the emergency stop button by turning it to the left as shown over the switch.
  • Tangling of wire wire rope :Lower the wire rope all the way to make sure your wire rope is not tangled by lowering or lifting it. If the wire rope is tangled, make sure to untangle it.
  • Test the limit Switches:This is a very important check that need to be done. Test the rope hoist limit switch, pressing the up button all the way. The limit switch should disconnect when the hook reaches the top of the rope hoist. Repeat the test by pressing the down button.
  • Check Cross Travel Motion:Press the second set of arrows on your control switch to move the crane to the right or to the left. Check the cross travel limit switches working by taking the rope hoist to the extreme of the monorail or the Crane Bridge.
  • Check the Crane Motion:Press the third set of arrows on your control switch to move the crane horizontally. Check the cross travel limit switches working by taking the crane to the extreme of the gantry rails.
  • Trial run with the load:Press the down arrow in the first set of arrows on your control switch to lower the crane. When your hook has been attached to yourload, you can press the up arrow to lift the load. Use the second and third sets of arrows to direct the load to its destination.

Maintenance of Wire Rope hoists

  • When transporting reels, it is best to do so by rolling on a flat surface. Alternatively it can also be lifted from a pipe in the reel center hole.
  • When kept for storage purposes it is necessary to make sure that the wire rope hoist is protected from moisture, sunlight, and even dirt or dust.
  • Special care is required while unreeling the wire rope hoist; in addition to which kinking or dragging the wire rope hoist over a shape edge that can damage it, should be avoided.
  • It is advisable to make use of splices when installing the wire rope hoist. This will help prevent the wire rope hoists from rotating.

Wire rope hoists drawing for your reference

CD1 type 0.5t-5 ton wire rope hoist drawing, lifting height 6m-9m electric hoist outline drawing

CD1 type 0.5t-5 ton wire rope hoist drawing, lifting height 6m-9m electric hoist outline drawing

CD1 type 0.5t-5 ton wire rope hoist drawing, lifting height 12m-30m electric hoist outline drawing

CD1 type 0.5t-5 ton wire rope hoist drawing, lifting height 12m-30m electric hoist outline drawing

CD1 type 10 ton wire rope hoist drawing, lifting height 9m-30m electric hoist outline drawing

CD1 type 10 ton wire rope hoist drawing, lifting height 9m-30m electric hoist outline drawing

CD1 type 10 ton wire rope hoist drawing, lifting height 35m-100m electric hoist outline drawing

CD1 type 10 ton wire rope hoist drawing, lifting height 35m-100m electric hoist outline drawing

16 ton wire rope hoist drawing

16 ton wire rope hoist drawing

50 ton wire rope hoist drawing

50 ton wire rope hoist drawing

Wire rope hoist production and testing

Wire rope hoist covering processing- Dongqi wire rope hoist for sale

Wire rope hoist covering processing- Dongqi wire rope hoist for sale

Wire rope hoist gears and electric trolley - Dongqi wire rope hoist for sale

Wire rope hoist gears and electric trolley - Dongqi wire rope hoist for sale

Wire rope hoist  rolling drum and installation - Dongqi wire rope hoist for sale

Wire rope hoist rolling drum and installation - Dongqi wire rope hoist for sale

Wire rope hoist paiting and testing - Dongqi wire rope hoist for sale

Wire rope hoist paiting and testing - Dongqi wire rope hoist for sale

Wire rope hoist for sale. 0.5 ton -32 ton rope hoist/ wire hoist for sale. Dongqi offers types of wire rope hoists, such as, single/ double speed wire rope host, explosion proof wire rope hoist, metallurgy wire rope hoist, European FEM standard wire rope hoist, etc. Which type of wire rope hoist, do you need? Contact us to get your custom wire rope hoist.

Project study: 5 ton wire rope hoist for Marine Work in Maldives

On our web, we get many wire rope hoist inquiries with daily. In the following, 5 ton wire rope hoist with 12 meters lifting height is required by a customer from Maldives is presented for your reference.

According the limited information, we quote him the normal standard wire rope hoist, at first and then he replied me:

“ Dear Latty

Thank you for the quotation/specifications. Further please be informed that, hoist going to use in our sand barge, which using in the sea. Therefore hoist require to withstand for the marine environment (salty atmosphere). Hence let us confirm the durability of the hoist accordingly.

Thank you
Kind regards

Rasika”

With the detailed information on the wire rope hoist listed in the letters about the working condition, Dongqi Crane can choose the suitable electric hoist design for the customer ‘s unique working condition, which improves the efficiency of communication and quickens up the quotation process. Based on the information, Dongqi Crane quotes the wire rope hoist with the feature of salty-proof, water-proof and the anti-corrosion and with technical drawing.

Wire rope hoist applicaiton conditions of Maldives client

Wire rope hoist application conditions from Maldives customer

“Dear Latty

Thank you for the offer and please send me the revised quotation with the best price and all reated the specifications.

In our requirement we no needs the sideways movement of the hoist and will be mounted in the centre of the mounting H beam in the sand barge as show in the attached picture.

  1. Required operating height – 10-12 Mtr
  2. Max Capacity – 5 Ton
  3. Remote operation
  4. Operating method – Electricity 3 Phase(380 VAC)
  5. Size and weight – small as possible
  6. Operation environment – Marine(In sea)

Thank you
Kind regards

Rasika”

Some changes on the specification of wire rope hoist and the photos of the working application have been sent to Dongqi Crane. Every detail about the wire rope hoist specifications and technical requirements has been confirmed, then waited about 2 days we have received our customer’s question:
What is the wire rope hoist weight? Quickly, our engineer estimated the weight and volume to the customer to help him to know more about our products.

Wire rope hoist specifications

Dongqi Crane always put our customer at the first place and try our best to satisfy with their demands. With our quick response, and two days later, the PO has been received. So if you need the overhead crane or electric wire rope hoist, please leave a message below.

Wire rope hoist projects list (Parts)

2 tonexplosion-proof electric wire rope hoist Thailand

2 tonexplosion-proof electric wire rope hoist Thailand. Explosion proof hoist is a type of wire rope hoist with high safety, used in hazardous environment. Check explosion proof wire rope electric wire rope hoist now. Dongqi explosion proof electric wire rope hoist at good price.

16 ton electric wire rope hoist Russia.

16 ton electric wire rope hoist Russia. Dongqi 16 ton electric wire rope hoist with 9 meter lifting height for sale Russia. Dongqi hoist and crane manufacturer offers types of cranes, i.e., overhead crane, gantry crane, jib crane, electric wire rope hoist, winch and other lifting equipment for Russia market.

10 ton Electric wire rope hoist Egypt

Dongqi 10 ton wire rope hoist with 10 meters lifting height for sale Egypt. Dongqi Hoist and Crane offers types of cranes, i.e., overhead crane, gantry crane, jib crane and electric wire rope hoist, winch and other lifting equipment for Egypt market.

5 ton Electric wire rope hoist for sale Indonesia

5 ton Electric wire rope hoist for sale Indonesia. As a wire rope hoist manufacturer and supplier, Dongqi Hoist and Crane offers types of hoists for customers, including single / double speed hoist, low headroom hoist, explosion proof hoist, safety hoist, etc.

45 ton Electric wire rope hoist, Custom wire rope hoist, Electric wire rope hoist

45 ton electric wire rope hoist. Dongqi Hoist and Crane offers types of wire rope hoist, single/double speed wire rope hoist, fem wire rope hoist with lifting capacity up to 80 ton. Check the custom made 45 ton wire rope hoist for your reference.

5 ton wire rope hoist with 50 m lifting height for sale Pakistan

Electric wire rope hoist for sale. Dongqi custom designed 5 ton wire rope hoist with 50 m lifting height for sale Pakistan. Dongqi offer types of wire rope hoists, single / double speed wire rope hoist, and explosion proof wire rope hoist, and metallurgy wire rope hoist, etc. Check custom 5 ton wire rope host project and get your individualized electric wire rope hoist now.

40 ton wire rope hoist is designed for Philippines

Rope hoist for sale Philippines.Types of customer electric wire rope hoists, electric chain hoist, electric wire rope hoists are for sale in Philippines customers from Chinese wire rope hoist suppliers and manufacturers, Dongqi Hoist and Crane.

5 ton wire rope hoist with 40 m lifting height

5 ton wire rope hoist custom design with 40 meters of lifting height from Dongqi Hoist and Crane, your wire rope hoist manufacturer. Dongqi types of electric wire rope hoists for sale. Contact Dongqi as your wire rope hoists manufacturer and supplier now.

1 ton wire rope hoist and 3 ton electric wire rope hoist are delivered to Estonia.

Dongqi offers types of electric wire rope hoists and cranes, such as electric chain hoist, electric wire rope hoist, workstation crane, shop crane, factory crane, and other types of cranes, etc.

5 ton overhead crane wire rope hoist installation picture

Dongqi Crane offers types of overhead cranes, gantry crane, jib crane, workstation crane, shop cranes, electric wire rope hoist, winch and trolley for Hongkong market. The 5 ton single girder overhead crane case is presented for your reference.

In the above, it is some of Dongqi wire rope hoists and crane projects for your reference. If you want to know more about Dongqi's projects around world,please contact us by email to sales@cranesdq.com.

Get your custom hoist

Tips on wire rope hoists selections

  • Before choosing a suitable rope hoist for your firm, it is advisable to evaluate its all features.
  • While choosing a rope hoist, consider its quality, durability and other important elements.
  • Cost is also an aspect while choosing a rope hoist, that is why analyze wire rope rly about different types of rope hoists available in the market
  • Determine that rope hoists are able to lift heavy loads, requires in your business.

Parameters needed to get your custuom electric wire rope hoist

Electric hoist parameters drawing

In order to give you suitable electric hoist solution and specific electric hoist price promptly, please help our electric hoist engineer to confirm the following information as much as possible:

  1. Types of hoist: chain hoist or wire rope hoist?
  2. Capacity:
  3. Height of Lift
  4. Power supply: (3phase? Voltage? Hz?)
  5. Quantity:
  6. Operation: Through Pendant/Radio Remote
  7. Indoor/Outdoor:
  8. Application (What are you planning to lift)
  9. Environment (Normal/ hazardous)
  10. Location
  11. Industry type: ( Eg: Auto, steel, sugar stone, etc.)
  12. Rail Existing/New (Size in case of Existing)
  13. Number of hoist:
  14. Existing Structure/New Structure:

Leave your electric hoist requirement below, and custom electric hoist solution will be offered for free. Email: sales@cranesdq.com. Your custom designed wire rope hosit will solve your lifting problems. Free wire rope hoist consultation will be replied in 24 working hours. Contact to get your wire rope electric hoist now.

Top
