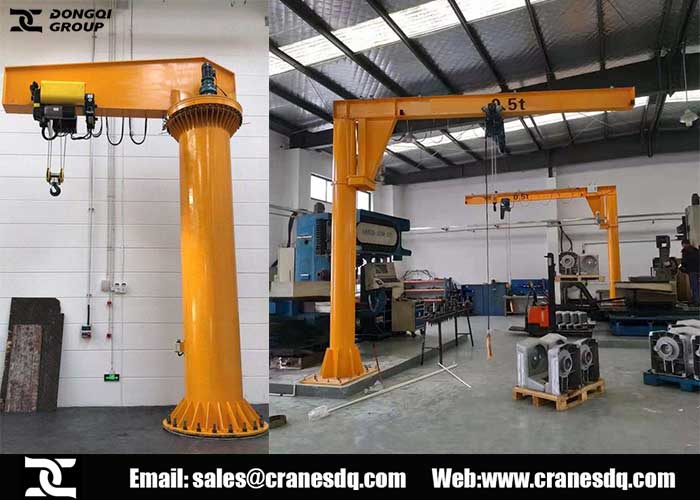

Heavy Duty Jib Crane For Sale
At DQCRANES, the heavy duty
jib crane for sale is available in capacities of 1 ton to 15 tons with arm length up to 10 meters and height under boom up to 15 meters and in pillar base plate mounted, foundation mounted, pillar sleeve mounted and foundationless mounted to match your needs.
Last month, DQCRANES designed and manufactured a 7 ton heavy duty jib crane with European standard design for the customer in Ecuador. The following is detailed project for your reference!
Background:
The customer was from Ecuador, looking for a
floor mounted jib crane which was installed at an iron ore mine. The mine is located underground, and the motorized jib crane is used to lift iron products from the mineshaft to the surface, the distance between the underground and the hoist hook is about 15m. The crane is also used to move iron products around the mine site.
Challenges:
The mine is located in a remote area of Ecuador, and the climate is hot and humid. The crane is also exposed to dust and other contaminants from the mining process. These conditions can put a lot of stress on the jib crane and can lead to premature wear and tear.
Solution:
- After learning about the requirements from our customer, our sales engineer suggested a heavy duty jib crane with 7 ton lifting capacity (upper rotation with slewing bearing), considering that the jib crane's working radius is long and has about 6m lifting height underground. The customer was very interested in our design solution.
- Our sales engineer sent the jib crane design and best quotation to the customer, our customer was very satisfied. Another question he mentioned was changing the CD type wire rope hoist to a European standard electric hoist. No problem, our sales engineer updated the latest design drawing and price list, and the customer decided to purchase the jib crane from us.
- Our European standard jib crane has a unique structure, safe and reliable, and has the characteristics of high efficiency, energy saving, time-saving, and flexibility. This pillar mounted jib crane is especially suitable for intensive lifting places. The jib crane is able to rotate 360 degrees, which allows the operator to lift and move loads in any direction.
- The jib crane for sale to Ecuador is also equipped with a safety system that prevented it from colliding with the walls of the mine. The European style jib cranes are widely used in fixed places such as workshops, warehouses, docks, and mines. The working class is generally A4 or A5.
Jib Crane for Sale Ecuador Technical Data
- Lifting capacity: 7 tons
- Lifting height: 8.39+6.6 meters
- Valid radius: 10 meters
- Duty class: A5
- Hoisting speed: 1.0/6.0m/min
- Rotating speed: 0~0.25r/min
- Traveling speed: 0~10m/min
- Lifting motor: 1.4/9.1kW
- Traveling motor: 0.45kW
- Rotation Angle: 360°
- Power supply: 440V/60HZ/3Phase
Production:
Result:
Now the jib crane production and package have been finished. Shipping is being arranged and we look forward to arriving at the customer's port smoothly.
European Standard Jib Crane Design Features:
- FEM/DIN Electric Chain Hoist
European standard
electric chain hoist has a compact structure and reliable performance. Modular design enables our products to be flexibly composed of different lifting tonnages, lifting speeds, and work grade systems. The excellent performance meets the requirements of fast transfer of goods and precision assembly, and can also be widely used in places with complex usage requirements to meet the individual needs of customers.
European type wire rope hoist and electric control unit. The voltage of the European standard pillar mounted jib crane is determined by the customer's local industrial voltage, and the electrical system is manufactured according to the voltage. The main components of our European standard design jib crane are the Schneider brand and the electric control system including multiple safety devices.
The jib arm is welded by a combination of I-beam and support, and its function is to realize the horizontal movement of the electric or manual trolley and the up and down movement of the electric hoist, and it rotates around the column.
The supporting arm supports the rotating arm and increases the bending resistance and strength of the rotating arm. The rotation mechanism is driven by the reducer to realize the electric rotation of the jib crane.
The fixed pillar supports and fixes the rotating arm of the
cantilever crane, and its upper and lower supports are composed of single-row tapered roller bearings that bear radial and axial forces.
Benefits
- Less investment and higher efficiency. Because of its wide adoption of plants and replacement of gantry cranes and frame cranes, you can save money on the space of plants and other cranes.
- Safe and durable. Good reputation. After the heavy jib crane was put into the market, we received much praise from customers.
- Easy to operate. A simple and scientific structure ensures your convenience in operating.
Buy jib crane from Dongqi Crane
As a jib crane manufacturer and supplier, Donqi Crane offers types of jib crane designs, and offers turnkey jib crane projects from jib crane design, jib crane production, to jib crane installation and maintenance for over the world. Generally jib cranes can be grouped into fixed jib crane, including, floor mounted jib crane and wall mounted jib crane, wall travelling jib crane, and mobile jib crane, etc.
If you have any doubt on jib crane or you want to buy jib crane, please feel free to contact us.
