Overhead Crane Oman: 3 Ton Suspension Crane for Steel Plant in Oman

Background

In Oman, a steel processing plant was in need of a reliable and efficient material handling system to streamline their manufacturing process. Their purchasing department found us for help, after a thorough evaluation of their needs and requirements, we recommended an under running bridge crane for their reference. Their technical department checked our design solution and decided to buy and install a 3 ton underhung overhead crane.

Designs



Specifications

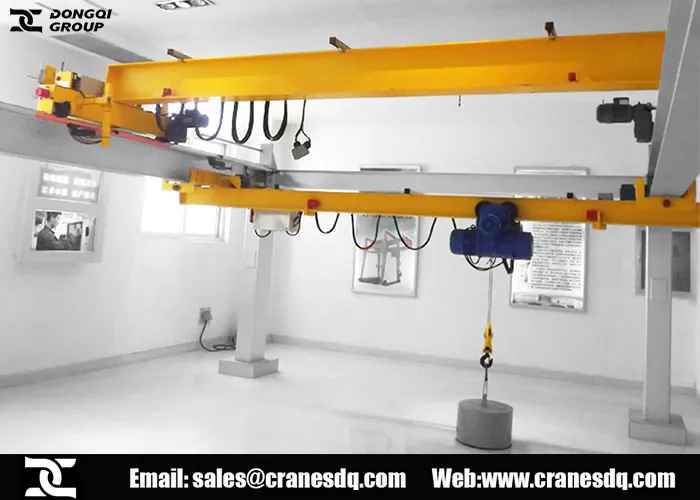

This European underslung overhead crane offered by DQCRANES is designed to handle up to 3 tons of weight with a span of 11 meters, lifting height 6 meters. The lifting equipment of crane is a NR type European electric hoist with variable speed control system that enables precise and smooth movements. Protection class IP55 Insulation class F, also equipped with safety features, such as overload protection, emergency stop button, and limit switches.

Applications

• The 3 ton underhung overhead crane is used to handle various materials in the steel processing plant, including steel plates, beams, and pipes. The crane's underhung design allows it to travel along the length of the workshop, covering the entire production area. The crane's precise movements and variable speed control enable it to lift and move heavy loads with ease and accuracy.
• The crane is also equipped with a remote control system that allows operators to control the crane's movements from a safe distance. This feature not only enhances operator safety but also improves productivity by reducing the time required to move loads.

Installation & Maintenance

• DQCRANES suspension is easy to install and requires minimal maintenance. Our crane comes with a detailed installation manual that provides step-by-step instructions on how to install the crane.
• The customer found the local crane installation team in Oman, and under the guidance of our installation manual and video connection, this suspension crane was successfully installed.
• The first step was to prepare the site by ensuring that the building structure was strong enough to support the crane's weight and load capacity. The installation team then mounted the crane's runway beams on the building structure and attached the crane's trolley to the runway beams.
• Once the trolley was in place, the team installed the crane's hoist and attached it to the trolley. The hoist's electrical wiring and controls were then connected to the crane's control panel. After the installation was complete, the crane was tested to ensure that it was operating safely and efficiently.
• This 3 ton suspension crane also comes with a maintenance manual that provides instructions on how to maintain and repair the crane. This European suspension crane is designed to require minimal maintenance, reducing downtime and increasing productivity. However, it is essential to conduct regular inspections and maintenance checks to ensure that the crane is operating safely and efficiently.

Why Choose Underslung Bridge Crane for Steel Plant?

Underslung bridge cranes are a popular choice for steel processing plants for several reasons:

• Maximum Use of Space: Underhung bridge cranes are designed to run on the bottom flange of runway beams, which maximizes the use of vertical space in the plant. This is especially important in steel processing plants where there is a lot of heavy equipment and machinery on the floor.
• Precision and Accuracy: Underhung bridge cranes are highly precise and accurate, which is essential in steel processing plants where precision is critical for safety and quality control. These cranes can easily handle heavy loads with precision, ensuring that materials are moved safely and efficiently.
• Cost-Effective: Underhung bridge cranes are often more cost-effective than other types of cranes, making them a popular choice for steel processing plants. They are designed to be lightweight, which reduces the load on the building's structure, leading to cost savings on installation and maintenance.
• Versatility: Underhung bridge cranes can be used for a wide range of applications in steel processing plants. They can be customized to suit the specific needs of the plant and can handle a variety of materials, from small parts to large sheets of steel.


Overall, underhung bridge cranes are a great choice for steel processing plants due to their space-saving design, precision and accuracy, cost-effectiveness, and versatility. They are an essential tool for increasing efficiency, reducing costs, and improving safety in the steel processing industry.

Top Running vs. Under Running Bridge Cranes

Top running and underhung bridge cranes are two different types of cranes that are used for lifting and moving heavy loads in industrial settings. Here are some differences between these two types of cranes:



• Design: Top running bridge cranes are designed with the bridge running on top of rails that are mounted on top of the runway beams. On the other hand, underhung bridge cranes are designed with the bridge running underneath the runway beams.
• Load Capacity: Top running bridge cranes are typically used for heavy-duty lifting operations and lifting capacity from 1 ton to 550 tons, are capable of lifting heavier loads compared to underhung bridge cranes, which lifting capacity is from 1 ton to 10 tons.
• Runway Beams: The runway beams for top running bridge cranes are typically larger and heavier than the runway beams for underhung bridge cranes.
• Cost: Top running bridge cranes are generally more expensive than underhung bridge cranes due to their larger size and heavier components.
• Installation: Top running bridge cranes require more space and a more complex installation process compared to underhung bridge cranes.
• Maintenance: Top running bridge cranes require more maintenance due to their larger size and heavier components. Underhung bridge cranes require less maintenance compared to top running bridge cranes.
• Flexibility: Underhung bridge cranes are generally more flexible compared to top running bridge cranes as they can be easily installed in a variety of different locations, whereas top running bridge cranes require a more specific installation location.

Contact DQCRANES, Choose a Suitable Crane System for You!

DQCRANES offer types of overhead cranes for various applications. Top running overhead crane and underhung bridge crane, which type of crane is right for your application? The following factors can help you to select a suitable crane system for your needs:


1. Is the existing support structure capable of supporting the weight of crane and loads?
2. Any additional support structure are required?
3. Are there existing runways which can accommodate the crane?
4. What is the capacity of the loads required to be lifted?
5. What is the condition of the available overhead room ? High, unobstructed ceilings, or limited headroom?
6. What is the lifting height required? Span?
7. Do you need single girder or double girder?
8. Does your loads need to be handled near the edges or walls of the building?
9. How is the condition of floor space?
