Gantry Crane for Sale to Pakistan - DQCRANES Crane Project in Pakistan
The client is from GHO MP Company in Pakistan, is a leading supplier of comprehensive wear solutions for global mining, construction and industry, mainly producing crusher wearing part, mill liners, grinding media, large special castings and more.
With the further development of the company, the substantial expansion of production capacity and the expansion into export markets, requires precise planning of the production and logistical processes in the existing plants.

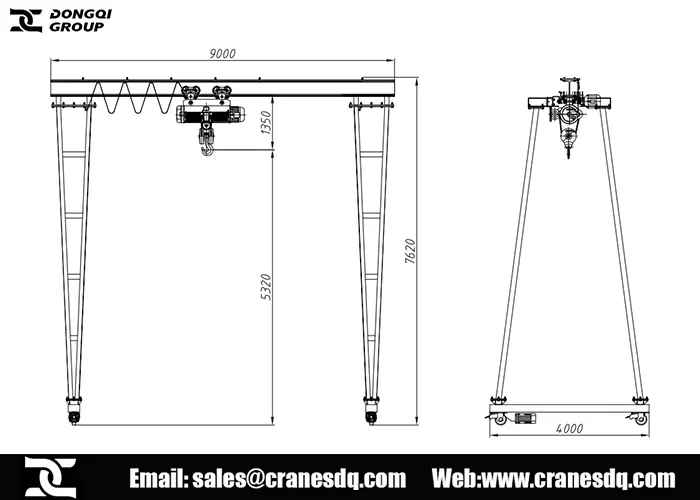

In December 2022, GHO ordered a 10 ton single girder gantry crane with 9m span and 5.32m lifting height from DQCRANES, which is used for hoisting the wearing parts of mining machine equipment. The followings are main parameters of
10 ton gantry crane for sale to Pakistan, for your reference. If need 10 ton gantry crane price, please
contact us here!
- Type: MH Single Girder Gantry Crane
- Lifting capacity: 10 ton
- Span: 9m
- Lifting height: 5.32m
- Lifting speed: 7m/min
- Hoist traveling speed: 20m/min
- Crane traveling speed: 6m/min
- Power supply: 380V, 3 Phase, 60HZ
- Control mode: Remote control
- Application: Used in a construction material factory
Now, the production of 10 ton gantry crane has been finished, ready to export to Pakistan. This gantry crane consists of the A-frame (girder, leg and the lower beam, etc.), electric hoist,
crane operation mechanism and electric control parts. The hoisting, transverse and longitudinal movement all have limited switch protection or buffer device, and is equipped with windproof clamp rail safety device. The working duty of this machine is A3. Moreover, there are two operating types, namely ground control and cabin control. If there are special requirements for weight lifting and other parameters, we can customize them according to the user's needs.
Why Clients Choose 10 Ton Gantry Crane from DQCRANES?
As an efficient lifting tool, gantry crane supplied by DQCRANES is most commonly used type in various industries such as manufacturing, construction, shipyard and railway in order to help enhance production. The 10 ton gantry crane is designed to meet small and light duty lifting requirements and brings many benefits to users.
High Mobility
- Compared with overhead crane, the gantry crane can be designed in mobile type to realize a convenient movement. The mobile type gantry crane makes it possible to be relocated in other workplaces, which is also an ideal option for rented facilities.
Durable Performance
- Built with solid and reasonable structure, the 10 ton gantry crane for sale has stable performance and prolonged working life.
Large Capacity
- Our gantry lifting system is capable of handling small and heavy materials with capacity ranging from several tons to hundreds of tons.
Custom Design
- We can provide customized the gantry crane to meet special needs of customers.
High Productivity
- 10 ton single girder gantry crane can lift and move heavy loads quickly and efficiently, making it a cost-efficient substitute for other lifting systems.
What Factors Affect the Gantry Crane Price?
Single girder or Double girder?
- If the lifting capacity of the gantry crane is too large, it is recommended to confirm with the technology and procurement whether it can adopt the a single beam gantry crane design or not .
- After understanding the working conditions, a single beam gantry crane is the preferred plan for general applications.
With cantilever or Without cantilever?
- It is very important to confirm with the client about the gantry cantilever effectively, the positioning of the loads and the limited position of hoist hook travelling will affect the design of gantry crane cantilever, which will affect the price of gantry crane largely.
Height or Lifting height?
- For general indoor use, pay attention to confirming the total height of the customer's plant and the customer's high requirements in advance, which will affect the selection of the quotation plan.
- If it is for outdoor application, and the lifting height of the gantry is super large. It is necessary to confirm with the customer in advance whether the lifting height includes the underground height.
Indoor use or Outdoor use?
- Learn as much as possible about the customer's working conditions and whether the use environment is indoor or outdoor.
- Under special conditions, we can customize explosion-proof gantry cranes for customers, etc.
Gantry crane for sale Pakistan
Custom Gantry Crane To Your Needs from DQCRANES
DQCRANES manufacture the gantry cranes after understanding the specific needs of the customers. What is the area you want to cover with the crane? What are your choices when it comes to the load capacity and crane span? We will also consider the operational frequency you want to make the lifting solution most tailored to you.
In most cases, our team of experts will check your worksite by online communication to learn about your space plan and workflow to choose the right design for the crane. You also have the option to choose either runways length for your gantry crane system. We are very pleased to received the customization needs of our customers and search for ways to serve them better.
As a trusted crane manufacturer and supplier in Pakistan, DQCRANES are excited to offer you with a full range of services around crane systems: from planning and design assistance to the selection of the best solution, to delivery and installation, to the maintenance and after-sales support.
