5 ton overhead warehouse cranes for sale Bangladesh. 4 different low headroom warehouse cranes designs for your selection. Get right warehouse overhead crane for your warehouse and workshop to improve efficiency and save money.
With experiences since 1984, Dongqi Cranes has offer various types of cranes for different industries and applications. As for warehouse crane and workshops crane design, Dongqi Crane can be ranked on top in China. Recently, 2 sets of warehouse overhead cranes are delivered to Bangladesh. And the main parameters and specifications are presented for your reference.

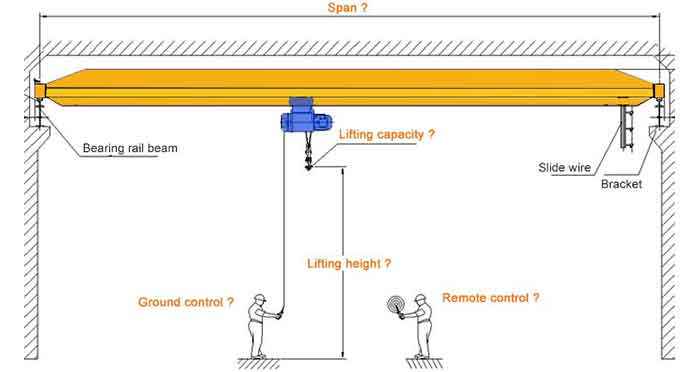

Warehouse overhead crane drawing for parameters and specifications confirmation
This is an undergoing new workshop, the civil work was done in local, including workshop shed and steel columns and brackets constructions. Two workshop cranes are installed into two separate workshops. Dongqi Cranes supply complete workshop crane and hoist services which including the crane parts, such as, runway beams and rails, power lines.
Before sending the offer, Dognqi Crane send the below workshop crane drawings for the confirmation of overhead crane main parameters and specifications:
For custom designed overhead crane for your workshop or warehouse the following information should be provided:
Generally, when you build a workshop, you must consider the working space for overhead travelling cranes, no matter the workshop is made of concrete columns or steel structures;
The overhead travelling crane project in Bangladesh is for a new constructed workshop made of steel structure. The overhead crane inquiry work was started at the same time with workshop civil work, they find local engineering company to design and layout and provide the foundation and steel columns construction, with their layout, DQCRANE is easy to design the crane span, effective lifting height, and other related dimensions, this is a perfect cooperation between 3 companies.
Runway beam, also called bearing rail beam(H beam), it is above brackets for supporting crane rails. Most clients do not very clear which part are the necessary for crane installation, below real picture will help you understand better:
Warehouse crane parts： H beam, bracket, steel column
Therefore, if you want to install a bridge crane, you should consider the support parts(steel columns, brackets, H beam and cranes, power lines). A complete set of eot crane includes main girder, end carriages with driving engines, crane wheels, electric control box, electric hoist and necessary small components.
Lifting height is the hook path from the ground, the hoist body height will take up some space. Except the lifting height, the safe distance from crane upper lever to roof should be considered into mind. If you want to achieve a desired lifting height, crane body dimension, hoist body height, safe distance mentioned above, all these should be considered in advance.
Bangladesh client workshop is a new designed and constructed, with crane design and layout, they don’t need to worry about the dimensions, and the most important is they always keep in touch with us of the crane design, and connected with civil work engineering design company of the combinations.
For some existing workshop, lifting height is always what they worry. Dongqi Crane offers 4 different workshop crane designs for your selection. And also custom warehouse and workshop crane designs are available provided that the specific dimensions of warehouse or workshop. More please contact us by email to sales@cranesdq.com.
Actually, there are several ways to improve the lifting height and send to you a desired crane.
For single girder overhead crane, low headroom electric hoist makes full use of the space maximally, and the girder on which it mounted is box girder type.
Single girder overhead crane with low headroom hoist solution for Haiti client
LDP model single girder overhead crane, this kind of bridge crane is different from the design of electric hoist, the hoist is on the above of girder, which maximally improves the effective lifting height.
Custom low headroom crane design- Dongqi warehouse and workshop crane
European single girder overhead crane has its own advantages, box girder, compact structure, advanced engines. The wire rope hoist is low headroom type.
Eureopean type low headroom crane for warehouse and workshop
Another solution to improve the lifting height is to install double girder overhead crane with crab hoist, the hoist is like a crab above the girders.
Bangladesh client’s overhead cranes and runway beams production are finished. Dongqi Crane will dispatch and tracking the shipment until to the client workshop site.
5 ton low headroom warehouse crane main girder
End carriage for Bangladesh 5 ton low headroom warehouse crane
Dongqi engineers are available to provide overseas installation work at site.

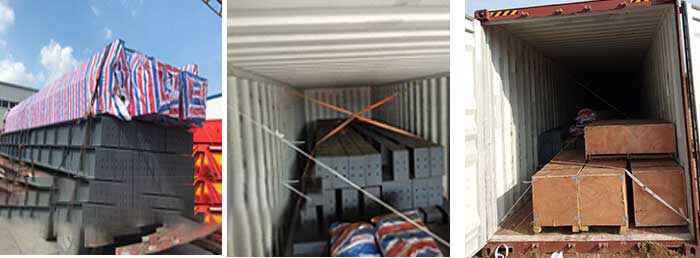

5 ton warehouse overhead crane is delivered Bangladesh
