Swing crane, swing lifting crane, swing arm crane

24 Apr, 2017

Swing crane for economical material handling. Swing crane also called swing lifting crane and swing arm crane is the most economical lifting cranes. Dongqi offering swing crane with lifting capacity up to 5 ton and custom crane swing radius. contact us to get your custom crane swing and swing crane.XCbHenan Dongqi Machinery Co., Ltd

XCbHenan Dongqi Machinery Co., Ltd

Swing crane with different crane designs videoXCbHenan Dongqi Machinery Co., Ltd

Swing lifting crane is small and medium-size lifting equipment, safe, reliable, high efficiency, energy-saving, time-saving and labor-saving and flexible feather, in the three-dimensional space and can operate freely, especially in the short, intensive lifting showing the occasion better than any other conventional lifting equipment unique advantages.XCbHenan Dongqi Machinery Co., Ltd

Application of swing lifting crane

The swing lifting crane or swing arm crane is widely used in workshops, warehouses, terminals and other fixed location.
Swing lifting crane is suitable to work in the dock, warehouse, workshop fixed working conditions, pillar mounted swing arm crane can work within the 360° to lift, move and materials handling,
The pillar swing arm crane is composed by the vertical shaft, swing crane arm, rotating shaft, electric hoist, the bottom of the vertical shaft is fixed on the concrete base.
Horizontally rotation of the swing crane arm: manual/electric, depend on the operator use the human force to push the impending working or self-prepared rope device, the hoist travel with the right and left straight line on the H beam, use the hoist to lift the heavy materials.XCbHenan Dongqi Machinery Co., Ltd

Types of swing crane designs


Dongqi is able to provide you the following pillar Swing crane but not limited to the pillar jib crane design.XCbHenan Dongqi Machinery Co., Ltd

pillar Swing crane drawings XCbHenan Dongqi Machinery Co., Ltd

Base plated mounted jib crane design, Insert mounted jib crane design, and Sleeve insert mounted jib crane design and Swing crane with different cantileversXCbHenan Dongqi Machinery Co., Ltd

pillar Swing crane  pictureXCbHenan Dongqi Machinery Co., Ltd

Pillar jib crane picturesXCbHenan Dongqi Machinery Co., Ltd

Advantages of swing lifting crane

This swing lifting crane with advantages of the simple structure, operate convenience, turning agile, wide working conditions
The product design is reasonable and safe operation, reliable operation, wide operation scope, 360 motor rotation, suitable for machining workshop, assembling workshop, foundry, heat treatment plant, transportation, loading and unloading, spare parts to flip homework.XCbHenan Dongqi Machinery Co., Ltd

Characteristics of swing lifting crane

  • Two types of swing lifting crane: BZ model (light medium) and BZD model (heavy duty medium)
  • Swing cranes can be used to match with single or double speed electric hoist and chain hoist
  • Swing cranes are suitable to work in the dock, warehouse, and workshop and fixed working conditions
  • Superior in short distance concentrated lifting
  • Backup controls: wired pendant type controls
  • Controller type: multi-direction
  • Working grade: A3

As a professional Swing crane manufacturer, Dongqi Crane can provide you various types of jib crane designs to suit your specific crane applications. Quality jib cranes with more suitable jib crane design for you selection!
Dongqi Crane is able to provide you pillar Swing crane, wall-mounted Swing crane, and wall travelling Swing crane.XCbHenan Dongqi Machinery Co., Ltd

Pillar Swing crane offering of Dongqi

0.5 ton pillar Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

pillar jib crane specifications XCbHenan Dongqi Machinery Co., Ltd

0.5 ton pillar Swing crane pdf downloadXCbHenan Dongqi Machinery Co., Ltd


1 ton pillar Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

1 ton pillar jib crane specificationXCbHenan Dongqi Machinery Co., Ltd

1 ton pillar Swing crane pdf downloadXCbHenan Dongqi Machinery Co., Ltd

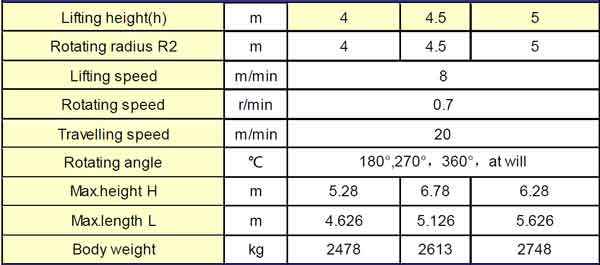

2 ton pillar Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

2 ton pillar Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

2 ton pillar Swing crane pdf download XCbHenan Dongqi Machinery Co., Ltd

3 ton pillar Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

3 ton pillar Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

3 ton pillar Swing crane pdf download XCbHenan Dongqi Machinery Co., Ltd

5 ton pillar Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

5 ton pillar Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

5 ton pillar Swing crane pdf downloadXCbHenan Dongqi Machinery Co., Ltd

Wall travelling Swing crane designsXCbHenan Dongqi Machinery Co., Ltd

wall travelling jib craneXCbHenan Dongqi Machinery Co., Ltd

Wall travelling jib crane sketchXCbHenan Dongqi Machinery Co., Ltd

Wall travelling Swing crane of Dongqi

0.5 ton wall-travelling Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

0.5 ton wall-travelling Swing crane specificationXCbHenan Dongqi Machinery Co., Ltd

0.5 ton wall-travelling Swing crane pdf downloadXCbHenan Dongqi Machinery Co., Ltd

1 ton wall-travelling Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

1 ton wall-travelling Swing crane specificationXCbHenan Dongqi Machinery Co., Ltd

1ton wall-travelling Swing crane pdf downloadXCbHenan Dongqi Machinery Co., Ltd

2 ton wall-travelling Swing crane specifications XCbHenan Dongqi Machinery Co., Ltd

2 ton wall-travelling Swing crane specifications XCbHenan Dongqi Machinery Co., Ltd

2 ton wall-travelling Swing crane pdf downloadXCbHenan Dongqi Machinery Co., Ltd

3 ton wall-travelling Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

3 ton wall-travelling Swing crane specifications XCbHenan Dongqi Machinery Co., Ltd

3 ton wall-travelling Swing crane pdf downloadXCbHenan Dongqi Machinery Co., Ltd

Wall mounted Swing crane designs

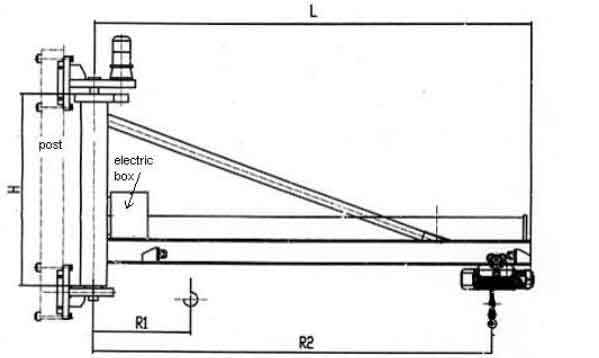

wall mounted jib crane drawingXCbHenan Dongqi Machinery Co., Ltd

Wall-mounted Swing craneXCbHenan Dongqi Machinery Co., Ltd

Wall-mounted Swing crane offering of Dongqi

0.25 ton wall mounted Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

0.25 ton wall mounted Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

0.25 ton wall mounted Swing crane pdf downloadXCbHenan Dongqi Machinery Co., Ltd

0. 5 ton wall mounted Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

0.5 ton wall mounted Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

0. 5 ton wall mounted Swing crane pdf downloadXCbHenan Dongqi Machinery Co., Ltd

1 ton wall mounted Swing crane specifications XCbHenan Dongqi Machinery Co., Ltd

1 ton wall mounted Swing crane specificationsXCbHenan Dongqi Machinery Co., Ltd

1 ton wall mounted Swing crane pdf downloadXCbHenan Dongqi Machinery Co., Ltd

Questions on Swing crane you may ask

After reading the specifications of Swing crane, you may think about the following question:
1. How to choose a jib crane?
2. How to choose the jib crane manufacturer or supplier?
3. How about Chinese jib crane manufacturer?
4. Why Chinese Swing crane are so cost-effective?
5. Any other question on Swing crane, etc.
If you have any question about Swing crane, please contact us for more information.XCbHenan Dongqi Machinery Co., Ltd


Articles on Swing crane are presented for your reference:XCbHenan Dongqi Machinery Co., Ltd
