Overhead crane motor and gantry crane motor classification, usage and selection tips

07 Mar, 2016

As a crane manufactuer and supplier, Dongqi is able to provide you types of crane motors for overhead crane, gantry crane, jib crane,etc. Check the classifications of crane motors and crane motor usage now.

Main crane parts supply scope of Dongqi Hoist and Crane

Generally speaking, Dongqi Hoist and Crane is able to provide types of crane parts and componets for various types of cranes and hoists, which includes the overhead crane, gantry crane, jib crane, workstation crane, shop cranes, single girder crane, double girder crane, European standards cranes and other industrial cranes, etc.


Overhead crane

Overhead crane motors

Dongqi Hoist and Crane is able to provide types of crane motors for various types of overhead ccranes, including single girder overhead crane, double girder overhead crane, top running overhead crane, etc.


Jib crane

Jib crane motors

Dongqi Hoist and Crane is able to provide types of crane motors for various types of jib cranes, including pillar jib cranes, wall jib crane, wall travelling jib crane, wall mounted jib cranes, etc.


Gantry crane

Gantry crane motors

Dongqi Hoist and Crane is able to provide types of crane motors for various types of gantry cranes, including double girder gantry crane, single girder gantry crane, semi-gantry crane, truss gantry crane, rail mounted gantry crane, shipbuilding gantry crane, and portable gantry crane, etc.

Part A: Overhead Crane Motor and Gantry Crane Motor Classification

1. By crane motor working power

According to working power, the overhead crane and gantry crane motors can be divided into DC and AC motors. Further, the DC motor can be divided: brush-less DC motor and brush, according to the working principle whereas the AC motors also can be grouped into single-phase motors and three-phase motors.

2. According to crane motor structure and working principle

According to the structurer and working principle, the motors for overhead crane and gantry cranes can be divided into direct current motor (AC motor), induction motors (AC motors), and synchronous motor.

3. By crane motor control

According to different motor controls, the motors for overhead crane and gantry crane can be divided into Electric motors and Servo motors.

crane motor classification



Part B: Crane Motor Usage

1. Servo motor - Dongqi crane motor

Servo motors are widely used in various control systems, the voltage input signal of which can be converted to mechanical output of the motor shaft. The drag element is controlled to achieve the control objectives.
Generally there are two types of servo motor: AC servo motor and DC servo motor. The first servo motor is a general DC motor, the under the control accuracy of which is not high, only using the general DC motor servo motor to do. Structurally, the current DC servo motor is a low-power DC motor armature control and field use of field control, but usually armature control.'

2. Stepping motor - Dongqi crane motor

Stepping motor is mainly used in CNC machine tools manufacturing. The stepping motor is not required the installation of the A / D converter, because digital pulse signal can be directly converted into angular displacement. The stepping motor has been considered as the best CNC machine tools actuator . In addition to the application of CNC machine tools, the stepper motor can also be used on other machines, such as an automatic feeder in motor, as a general floppy disk drive motor can also be used in the printer and plotter.'

3. Torque motor - Dongqi crane motor

Torque motor has the characteristics of low speed and high torque. In the textile industry, the AC electric motor torque is commonly used for it works the same structure and single-phase asynchronous motors.

4. Switched Reluctance Motor - Dongqi crane motor

Switched Reluctance Motor is a new variable speed motor. The structure of the switched reluctance motor is extremely simple and robust, low cost, high speed performance, which is a strong competitiveness, comparing with traditional motor control, with strong market potential.

5. Brush-less DC motor - Dongqi crane motor

Brush-less DC motor has good linearity, wide speed range, long life, easy maintenance and low noise. Comparing with brush motor, the brush-less DC motor is free from a series of problems caused by the brush, so that the motor has wide applications in the control system.

6. DC motor - Dongqi crane motor

The Direct current motor also called DC motor has the features such as good speed performance, easy starting, and also can be started with loads, therefore the current application of the direct current motor is still widespread, especially in the SCR after the DC power supply.

7. Asynchronous motor - Dongqi crane motor

Asynchronous motor has the features of simple structure, easy manufacture, use and maintenance, reliable operation and low mass, low cost. They are mainly used in asynchronous motor driven machine tools, pumps, blowers, compressors.

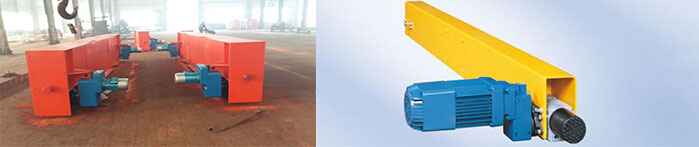

Motors for overhead crane and gantry crane

Part C: Types of crane motors of Dongqi Hoist and Crane

1) According to the power supply

0.25kw crane motor
0.25kw crane motor

0.4kw crane motor
0.4kw crane motor

1.1kw crane motor
1.1kw crane motor

1.5kw crane motor
1.5kw crane motor

2.2kw crane motor
2.2kw crane motor

7.5kw crane motor
7.5kw crane motor

2) Other crane motors offering

Dongqi can offers types of crane motors such as, 3 phase crane motor, Geared crane motor, Crane high torque motor, Heavy duty cran3e motor, and Crane end carriage motor, etc. Contact us WhatsApp/ WeChat: +86 150 3617 7583 to get the right motor for your overhead crane, gantry crane, jib crane and workshop cranes now.

overhead crane ac motor
Overhead crane ac motor

Crane High Torque Gear Motor
Crane High Torque Gear Motor

crane gear reduction motor
Crane gear reduction motor

crane helical gear motor
Crane helical gear motor



Part D: General Issues on Overhead Crane Motor & Gantry Crane Motor Selection

1. When the ambient temperature exceeds 40 ° C, it has two ways to select the overhead & gantry crane motor;

  • First, using the motor with insulation Class H, H-class motor is suitable for temperatures not more than 60 ° C environment;
  • Second, using the motor with insulation class F, but priority to the first method.

2. When overhead & gantry cranes working at an altitude of above 1000m,it need to put the motor capacity higher.

3. The overhead crane and gantry crane working outdoors, it should adopt motors with protection class IP54.
4. Overhead crane and gantry cranes perform non-continuous long-term work, you do not need to select the motor with S1 continuous duty or electrical connection rate JC100%. The overhead & gantry crane should select the motors with corresponding working level and the corresponding duty electrical connection sustained rate based on working class.(For different control mode, the choice of the specific way is different).

5. For the overhead and gantry cranes which are operated continuously for more than 10 minutes, they should use the lifting motors with S2 duty, the operating system of which allows for 30 minutes and 60 minutes performance. To choose 30 minutes or 60 minutes duty motor, it should be in accordance with the actual running time of institution. For the hoisting mechanisms of overhead crane and gantry cranes, the S4 duty motors are always the right choices.

6. The frequency motor generally do not provide the parameters for S2, S4 and S5 work system, according to the corresponding YZR power value to calculate.

7. Permitted by general conditions, it should choose the motors with less poles as far as possible for the overhead crane and gantry crane.
8. After the selection of overhead & gantry crane motor, it should be overload and fever checked.

9. Using stator voltage and speed control, frequency speed control system, or other information feedback and other special requirements, it needs to set mechanical design components together, which should contact the electrical relevant personnel.
10. When the user has special provisions for the overhead & gantry crane motor, it should be selected as user requirements.
11. The selection of overhead & gantry crane motor should be appropriately adjusted according to actual situation, to make the motor economical, reliable, and to achieve relatively ideal effect.
