Indoor overhead crane, Indoor gantry crane, Indoor free standing crane

27 Feb, 2017

Indoor overhead crane is a type of Indoor overhead cranes which are used for material handling inside workshops. As an overhead crane company, Dongqi Hoist and Crane is able to provide types of Indoor overhead cranes and other indoor material handling solutions such as gantry crane, jib cranes, and hoist crane and trolley lifting crane, etc. Today the focuses is the Indoor overhead crane.pgoHenan Dongqi Machinery Co., Ltd

Indoor overhead crane

Indoor overhead crane provides a new solution for material handling in a confined warehouse or workshop, which combining lifting with drive platform creatively, with the features such as, reducing the material handling costs and complexity of indoor loads handling efficiently.pgoHenan Dongqi Machinery Co., Ltd
Indoor overhead crane, also called indoor bridge crane, is a type of overhead travelling crane installed in indoors. The Indoor overhead crane can be grouped into the following types:pgoHenan Dongqi Machinery Co., Ltd

  • Single girder Indoor overhead cranes
  • Double girder Indoor overhead cranes,
  • Heavy-duty lifting cranes with a capacity over 20ton
  • Light -duty overhead cranes which capacity between 1ton to 20 ton (such as the portable overhead crane and mobile overhead crane).
  • Indoor overhead cranepgoHenan Dongqi Machinery Co., Ltd

    Indoor overhead crane: Capacity: 3.2~16t , Span: 7.5~28.5m, Height: 6~12mpgoHenan Dongqi Machinery Co., Ltd

  • Indoor overhead cranepgoHenan Dongqi Machinery Co., Ltd

    Indoor overhead crane: Capacity: 1-20t, Length: 7.5-28.5m, Height: 6-18mpgoHenan Dongqi Machinery Co., Ltd

  • Indoor overhead cranepgoHenan Dongqi Machinery Co., Ltd

    Indoor overhead crane: Capacity: 15t , Length: 10.5~31.5m , Height: 6~80mpgoHenan Dongqi Machinery Co., Ltd

  • Indoor overhead cranepgoHenan Dongqi Machinery Co., Ltd

    Indoor overhead crane: Capacity:5-320t, Length: 10.5~31.5m, Height: 6~18mpgoHenan Dongqi Machinery Co., Ltd

  • Indoor overhead cranepgoHenan Dongqi Machinery Co., Ltd

    Indoor overhead crane: Capacity :5-320t, Length: 10.5~31.5m, Height: 6~18mpgoHenan Dongqi Machinery Co., Ltd

  • Indoor overhead cranepgoHenan Dongqi Machinery Co., Ltd

    Indoor overhead crane: Capacity: 5~30t, Length: 10.5~31.5m, Height: 6~35mpgoHenan Dongqi Machinery Co., Ltd

Advantages of Indoor overhead cranes

  • The main advantages of the Indoor overhead cranes are simple structure, convenient maintenance, and wide application.
  •  Light weight, dependable performance, easy Operation.
  •  Small wheel load, small boundary size, reduce the pro-phase project capitals in workshop establishment and also lower the cost on the lighting and heating.
  •  Reliable performance, portable and endurable.
  • The decreasing workload in repair and maintenance for the high quality and high-performance components, and the lower energy consumption which benefit for saving workshop’s usage cost make Indoor overhead cranes wide used.

Application of Indoor overhead cranes

Indoor overhead cranes are widely used in places such as,pgoHenan Dongqi Machinery Co., Ltd

  • Factory, warehouse, harbor and hydro power station, etc.
  • Ironwork, hydro power station, spaceflight, water craft, coal industry and petrochemical industry, especially for factory with insufficient spatial height.
  • The Indoor overhead crane can also help to economize the steel structure in the plant.
  • As the top overhead travelling crane and the biggest supplier in China, Dongqi Hoist and Crane has provided high-quality Indoor overhead crane for many customers around the world, such as USA, Singapore, Africa, India, Egypt, Malaysia and so on.

pgoHenan Dongqi Machinery Co., Ltd
Tips on select the right Indoor overhead cranes for your application:

1. Before order, you should confirm clearly the following Parameter: Lifting Weight, span, lifting height, control mode, and track types.pgoHenan Dongqi Machinery Co., Ltd
2. Contact the specialist for professional consultation.pgoHenan Dongqi Machinery Co., Ltd

Indoor gantry crane

Indoor gantry crane includes heavy-duty cranes and small cranes that used in the indoor environment, small cranes usually refer to the portable cranes which dead weight is light, and easily for move, while the heavy-duty cranes mainly used for lifting weighty goods.pgoHenan Dongqi Machinery Co., Ltd

Main Parameters of Indoor Gantry Crane

  • Indoor Gantry Crane Working Duty: A3~A6
  • Indoor Gantry Crane Lifting Height: 6~18m
  • Indoor Gantry Crane Loading Capacity: 0.5~200t
  • Indoor Gantry Crane Lifting Speed: 5.9~11.2m/min

European indoor gantry crane case of Dongqi Hoist and Crane

Until now, our European indoor gantry cranes have been widely installed in the world, including the UK, Germany, Italy, France, USA, Australia, Canada and other countries, etc. pgoHenan Dongqi Machinery Co., Ltd
In the below photo, this is one European type gantry crane which is installed in the Australia.pgoHenan Dongqi Machinery Co., Ltd

European indoor gantry cranepgoHenan Dongqi Machinery Co., Ltd

European indoor gantry crane : Single girder gantry crane drawingspgoHenan Dongqi Machinery Co., Ltd

European indoor gantry crane main parameter:

  •  Indoor gantry crane lifting capacity:5tons
  •  Indoor gantry crane lifting capacity lifting height:3.8m
  •  Indoor gantry crane lifting capacity span: 15.5m.

This European indoor gantry crane has been finished the installations in the 2015.When the first time I talked with the customer, they send me their warehouse layout, from the layout, we see their whole height of warehouse is just about 4.6meters,but the customer requested the 3.8m lifting height. We checked the traditional crane is impossible to meet this requirement. Then we advised them the European indoor gantry crane: the low headroom single girder gantry crane.pgoHenan Dongqi Machinery Co., Ltd
Then the customer is very happy with this kind design and placed the order to us. Then production, sea delivery, etc.pgoHenan Dongqi Machinery Co., Ltd

European indoor gantry crane

European  gantry cranepgoHenan Dongqi Machinery Co., Ltd

European indoor gantry crane: European type gantry cranepgoHenan Dongqi Machinery Co., Ltd

After the installations of European indoor gantry crane, it is the time for customer to pass the Australia official testing (As we know ,the material lifting equipment is belong to the special machine ,it has been passed the testing so we can used).As a crane manufacturer, we are the few manufacturers who can handle the whole production lines from the crane parts(hook, wheel, pulley, winding drum, hoist, etc. ) to the whole set crane. So we can make sure that we sending the testing requirement needed specifications soon. Then the European indoor gantry crane passed the testing soon as we expected.pgoHenan Dongqi Machinery Co., Ltd

indoor semi-gantry cranepgoHenan Dongqi Machinery Co., Ltd

Indoor crane: Semi-gantry crane, Yuantai crane, Dongqi CranepgoHenan Dongqi Machinery Co., Ltd

Dongqi Crane as the professional crane manufacturer, you can totally trust our design which will be the most suitable one for your application and crane quality which will be totally confirmed with the national standards and local standards of the application. If you have any question on European indoor gantry cranes or other lifting equipment, please feel free to contact us. pgoHenan Dongqi Machinery Co., Ltd
Dongqi Crane is here to lift you up.pgoHenan Dongqi Machinery Co., Ltd

Freestanding indoor crane

Free standing Monorial overhead cranepgoHenan Dongqi Machinery Co., Ltd

Free standing Monorial overhead cranepgoHenan Dongqi Machinery Co., Ltd

The freestanding Monorial overhead cranes is also called floor mounted or column mounted monorial crane which is an excellent alternative for work areas that cannot be serviced by bridge cranes: hard-to-reach locations, buildings with high ceilings, or—with our freestanding monorails—outdoor areas without existing overhead structures.pgoHenan Dongqi Machinery Co., Ltd
Freestanding monorail configurations include:pgoHenan Dongqi Machinery Co., Ltd

  • Cantilevered systems,
  • H-frame systems, typically requiring only standard 6-inch reinforced concrete floor,
  • T-frame systems, ideal for parallel monorail lines (e.g. send and return).

Free Standing Jib indoor cranepgoHenan Dongqi Machinery Co., Ltd

The free standing jib indoor crane are designed to service circular areas and support tool balancers, air balancers, vacuum lifters, and hoists. When floor mounted, this type of free standing jib indoor crane can accommodate up to a 360 degree rotation. Capacities of the jib indoor crane are available from 100 lbs. to 1000 lbs. with spans up to 16'.pgoHenan Dongqi Machinery Co., Ltd

  • Most of the free standing jib indoor crane can be bolted directly to existing floors without adding special foundations
  • Features a retaining pin through the pivot pin to help resist accidental upward dislodgement of the boom assembly
  • Includes hoist trolley

Free standing jib workshop overhead cranepgoHenan Dongqi Machinery Co., Ltd

Free Standing Jib indoor cranepgoHenan Dongqi Machinery Co., Ltd

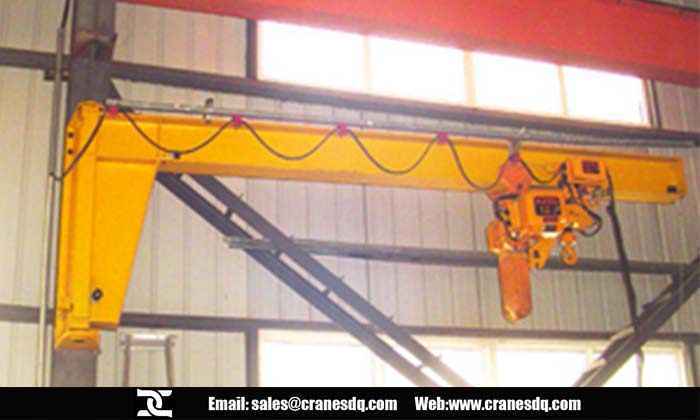

Wall Cantilever Jib indoor crane

The wall cantilever jib cranes are designed to service circular areas and support tool balancers, air balancers, vacuum lifters, and electric hoists. When column or wall mounted, the wall cantilever jig cranes can handle up to a 200 degree rotation. Capacities of this type of jib indoor crane are available from 100 lbs. to 1000 lbs. with spans up to 16'.pgoHenan Dongqi Machinery Co., Ltd

  • Available in steel (all capacities) or stainless steel (capacities to 500 lbs.)
  • Uses enclosed track for the boom assembly, which reduces dead weight for easier rotation than traditional I-Beam Jib Cranes
  • Uses tapered roller bearings at the pivot points for unsurpassed ease of rotation.

Wall cantilever workshop overhead cranepgoHenan Dongqi Machinery Co., Ltd

Wall Cantilever Jib indoor cranepgoHenan Dongqi Machinery Co., Ltd

Tie Rod Jib indoor crane

The tie rod jib workshop overhead crane has the features such as, light-weight, high strength extruded aluminum enclosed track. This revolutionary track reduces the rotational dead weight of the boom by 56% to 68%, making the jib up to 40% easier to rotate than comparable I-Beam Jib Cranes. The tie rod design minimizes deflection and is more precise when positioning loads than other jib cranes.pgoHenan Dongqi Machinery Co., Ltd

  • The tie rod jib crane can be mounted to wall or column
  • Available in capacities from 150 - 2000 lbs. with spans up to 20'
  • Has less deflection for easier load control and positioning

Tir rod jib workshop overhead cranepgoHenan Dongqi Machinery Co., Ltd

Tie Rod Jib indoor cranepgoHenan Dongqi Machinery Co., Ltd

Indoor crane for material handlings in factory, workshop, warehouse, workstation, etc. Dongqi have types of indoor cranes, such as, indoor overhead crane, indoor gantry crane, and indoor free standing cranes at your selection. Contact us to get more informaiton on the types of cranespgoHenan Dongqi Machinery Co., Ltd
