Custom designed gantry cranes for sale. How to design gantry crane? The 5 factors affect gantry crane designs, i.e. gantry crane girder design, span and arm length design, gantry crane wheel track, crane span size, and electric control, etc. Types of custom gantry crane designs are for you to save time, energy, and money.

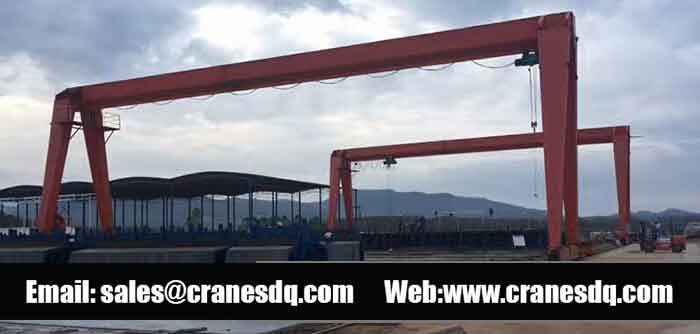

Dognqi gantry crane - Custom gantry crane design with crane span of 36 m

Dognqi gantry crane - Custom gantry crane design with crane span of 36 m

Factores affects gantry crane design

There are five factors need to pay attention to about gantry crane design.

Gantry crane girder design

Gantry crane girder design is very important. According to different application, the gantry cranes can be designed into single girder gantry crane, double girder gantry crane, truss girder gantry crane, and box girder gantry crane, etc.

Usually, the lifting capacity is under 50 tons, span in 35 meters, the use of no special requirements, appropriate chooses single main types. If the door legs need wide width, high work efficiency, or often lifting heavy pieces, should use the double girder gantry crane. Truss girder gantry crane is used when wind is heavy. Box girder gantry crane is used for heavy duty material handling.

Span and arm length

Gantry crane span crane is an important factor affecting its quality. In order to meet the demand of equipment selection, the conditions of use and span series standard, should try to reduce the span.

The determination principle of wheel track

  • 1. Can meet the stability requirements of gantry crane track direction
  • 2. Dimension of goods can be smoothly through the legs of flat steel
  • 3. Pay attention to track B and S into a certain proportion, generally the tread B= (1/4? 1/6) S

Determine the gantry crane span size

At work, gantry crane yard and external sizes of cargo and transport vehicles should leave some space size between channels, to facilitate loading and unloading operation. General transportation vehicles within the span of loading and unloading, and door shall be maintained legs more than 0.7 m spacing. There should be more than 0.5m spacing and transport vehicles when the spreader does not work. Goods more than one door legs, spacing should be more than 0.5 m

Types of custom gantry cranes designs for you

Desides the main gantry crane designs, such as, single girder gantry crane design, , double girder gantry crane design, truss gantry crane, portable gantry crane desing, Dongqi crane has offered types of custom gantry cranes for cuctom around world


Yard gantry crane: Up to 400 ton gantry crane for open yard factory

Yard gantry crane design. Up to 400 ton gantry cranes are used for material handling in open yard factory. Dongqi single girder yard gantry crane design and double girder yard gantry crane design are available. Dongqi types of gantry crane designs. Get your custom yard gantry crane design now.


Explosion proof gantry crane, Explosion proof hoist, Dongqi gantry crane and hoist

Explosion proof gantry crane design. Dongqi offers types of explosion proof gantry crane designs with lifting capacity from 0.5 ton to 32 ton. Dongqi explosion gantry crane and explosion proof hoist have been exported to North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, etc.Get your custom explosion proof gantry crane design now.


Roof crane and Rooftop gantry crane from China roof crane manufacturer

Roof crane design. Dongqi roof crane, rooftop gantry crane, and rooftop gantry crane and custom roof crane designs are available. Up to 550 ton roof crane are for sale from Dongqi, top roof crane manufacturer from China. Get your custom roof crane design now.


Outdoor gantry crane and gantry crane working environment

Outdoor gantry crane has to be strong and safe enough to resistance the outdoor environment. When select an outdoor gantry crane, what should be noticed?Check outdoor gantry crane working environment notice and get most robust gantry crane design for your application now.


Gantry hoist: A frame hoist & A frame crane | Dongqi gantry hoist supplier

A frame hoist and crane design. A frame hoist, gantry hoist, mobile a frame crane, fixed a frame crane, and A frame crane accessories are all at your selection. Dongqi gantry hoist and gantry crane supplier offers CE hoist and crane at economical price. Get your cusotm gantry hoist design now.


Steel mobile gantry crane, A-frame gantry crane, Adjustable mobile gantry crane

Mobile gantry crane design. Types of mobile gantry cranes for sale, A frame mobile gantry crane, fixed mobile gantry crane, adjustable mobile gantry crane, steel mobile gantry crane, etc. Get your custom mobile gantry crane design at good price now.


Adjustable gantry crane design: 3 ton, 10 ton 3 way adjustable gantry crane design

Adjustable gantry crane design good price. Dongqi adjustable gantry crane with capacity up to 3 tons and up to 10 tons for sale good price. The adjustable gantry crane is your affordable material handling solution. 3 way adjustable gantry crane is your most convenient gantry crane. Get your custom adjustable gantry crane design now.


Steel gantry crane design: Fixed height steel gantry crane & adjustable steel gantry crane

Steel gantry crane design good price. Fixed height steel gantry crane and adjustable height steel gantry crane with lifting capacity up to 10 ton are available for light material handling. Get your cusotm steel gantry crane design now.


Goliath crane design: Types of goliath cranes & semi goliath cranes

Goliath crane design good price. Traditional goliath crane and cost-effective semi goliath crane all are available. Dongqi goliath crane and semi goliath crane system is widely used due to the cut-to-tail design, which can meet the needs of customers pleasantly. Get your cusotm goliath crane design now.


A- frame gantry crane with castor wheels, Dongqi custom  A-frame gantry crane design for sale

A- frame gantry crane design good price. Dongqi Hoist and Crane manufactures A-frame gantry cranes, also known as A-frame cranes, KDCs, and light duty gantry cranes, suitable for a range of applications. Chinese A-frame gantry crane design, good price. Get your custom gantry crane design now.


Heavy gantry crane design: 30 -200 ton heavy duty gantry crane for sale

Heavy gantry crane design affordable price. Dongqi heavy duty gantry crane with lifting capacity of 30 to 200 ton for heavy loads or material handling with high safety and efficiency, and stability. Get your cusotom designed heavy gantry crane system now.


Cantilever gantry crane design : 5 -200 ton cantilever gantry crane for sale

Cantilever gantry crane design good price. Chinese cantilever gantry crane with lifting capacity of 5 ton to 200 ton for sale with good price. Compare cantilever gantry crane and gantry crane with no cantilever to get your ideal gantry crane now.Get your cusotm cantilever gantry crane designs now.


Electric hoist gantry crane design: Economical electric hoist gantry crane for sale

Electric hoist gantry crane design good price. Dognqi economical electric hoist gantry crane for light material handling with custom design to meet all your requirements. A type and L type electric hoist gantry crane design. Get your custom gantry crane design now.


Gantry crane design: High safety gantry crane with shield protection for subway tunnel construction

Gantry crane design: High safety gantry crane with shield protection for subway tunnel construction. As a top gantry crane manufacturer, Dongqi Hoist and Crane is able to provide you types of gantry crane designes, especially custom gantry cranes, such as the gantry crane with shield protect for subway tunnel construction. Learn more on Dongqi gantry Crane.


Gantry crane design: Gantry crane with A shaped leg for outdoor use for sale

A shaped leg gantry crane design good price. Dongqi gantry crane with A shaped leg for material handling with high quality and safety. Chinese gantry crane design. Check and get your custom A shaped leg gantry crane design now.


Double beam gantry crane design: 5- 50 ton double beam gantry crane with U-shape leg

Double beam gantry crane for sale good price. The 5- 50 ton double beam gantry crane with U-shape leg is designed for intensive container stacking. Dongqi double beam gantry crane design. Check the Chinese double beam gantry crane design and get your cusotm gantry crane now. .


Single beam gantry crane design: 5- 50 ton single beam gantry crane with L shaped leg

Single beam gantry crane for sale good price. The 5- 50 ton single beam gantry crane with L shaped leg saves supporting steelwork cost or build cost, and floor space. Dongqi single beam gantry crane design. Get your L shaped leg gantry crane designs now.

The selection of gantry crane electrical equipment

The 5 factors affect gantry crane designs, i.e. gantry crane girder design, span and arm length design, gantry crane wheel track, crane span size, and electric control, etc. Select professional gantry crane design, to save time, energy, and money. Contact us to get more information on gantry crane and gantry crane designs.

Get your custom gantry crane designs

Gantry cranesare a type of crane built atop a gantry, which is a structure used to straddle an object or workspace. Gantry cranes for marine application are imposing, multi-story structures prominent at most container terminals, used to load intermodal containers on and off container ships.

Gantry crane specification diagram

Before the designing of  gantry crane for a specific application, the following main parameters of the gantry cranes are needed:

  • Types of gantry cranes: Single/double girder gantry crane? Semi-gantry crane? Truss gantry crane? Movable gantry crane?
  • Gantry crane lifting capacity: Ultimate load lifting capacity= ____tons.
  • Gantry crane span: distance between the railway center = ____ meters.
  • Gantry crane cantilever: with cantilever at both sides or at one side? Or without cantilever?
  • Gantry crane lifting height: height of lifting from the ground to the lift center (Hook) = ____ meters.
  • Gantry crane use/application: ____________________________________
  • Control methods: Remote control / Cabin control /Panel control
  • Frequency = ____.
  • Voltages = ____.

Please leave your custom gantry crane inquiry with the mentioned parameters so that we can send you more suitable gantry crane with custom designs and  specific gantry crane quotation with more specific gantry crane price.
