Free standing bridge crane & free standing bridge crane system

25 Apr, 2017

Free standing bridge crane is one type of Dongqi free standing crane. Dongqi free standing crane and free standing crane systems offers your completed bridge crane services, CE quality, Cost-effective price, Quick delivery, Easy installation, Low maintenance. Check Dongqi free standing bridge crane now.DRrHenan Dongqi Machinery Co., Ltd

Free standing bridge craneDRrHenan Dongqi Machinery Co., Ltd

Free standing bridge craneDRrHenan Dongqi Machinery Co., Ltd

Free standing bridge crane for sale. Types of Free standing bridge cranes are available, such as, overhead Free standing bridge crane, KBK Free standing bridge crane, Jib Free standing bridge crane, etc. Get your Free standing bridge crane now.DRrHenan Dongqi Machinery Co., Ltd

Free standing bridge crane

Free Standing bridge crane is an overhead workstation crane supported on floor do not put stress on the building's overhead structure. Installation is usually straighter forward, and these cranes are also easier to relocate in the future. Free Standing bridge crane systems require a reinforced concrete floor of at least 6 inches.DRrHenan Dongqi Machinery Co., Ltd

Features of free standing bridge crane

  • Capacities from 150 to 4000 lbs ( can be customized.)
  • Easy to move and position loads
  • Modular design for greater flexibility
  • Doesn't require existing support structure

Applications of free standing bridge crane

The Free standing bridge crane can be used in various occasions, such as: DRrHenan Dongqi Machinery Co., Ltd

  • The Free standing bridge crane can be used for handling lighter loads (less than 4000 lbs.)
  • In various workshops, the Free standing bridge crane can be used, such as Process Equipment Maintenance, Parts Assembly, Palletizing loads, Warehouse loading docks, Machining, Truck Service Centers, Injection Molding , etc.

Free standing bridge crane system

FREE STANDING BRIDGE CRANE STRUCTURESDRrHenan Dongqi Machinery Co., Ltd

Dongqi Crane's free standing bridge crane Structures are a perfect solution for situations where overhead crane installation is otherwise difficult or impractical. For Crane Systems up to 5 Ton, runways are usually installed above the floor without concrete footings, a perfect solution for pre-cast concrete buildings.Since all connections are bolted rather than welded, this system is easily dismantled and moved to another location, an advantage when used in a leased building. Dongqi Cranes low headroom design also maximizes lift when headroom is at a premiumDRrHenan Dongqi Machinery Co., Ltd

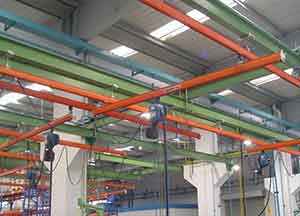

Workstation Free standing bridge craneDRrHenan Dongqi Machinery Co., Ltd

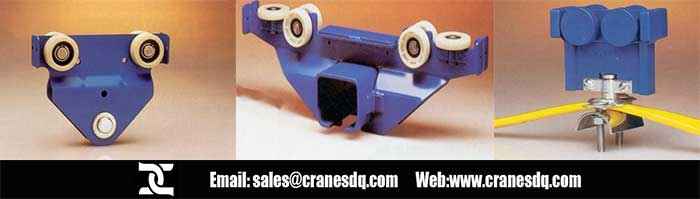

  • HOIST TROLLEYS: Hoist trolleys provide the connection between the lifting device and the monorail. The trolleys are designed for effortless movement along the track. The stamped body fits most rigid hook or eye lifting devices.
  • END TRUCKS: End trucks provide the connection between the bridge and runways. They are designed for effortless movement along the runway.
  • FESTOON TROLLEYS: Festoon trolleys (optional) are used to support flat cable or air hose along the monorail. The trolleys have four wheels and a pivoting festoon saddle support. They are ideally suited for long runways (greater than 63 feet) or with round cable or air hose. With monorails greater than 63 feet or with an all-aluminum system, festoon trolleys are standard. Special festoon trolleys for vacuum hose are also available.

Free standing bridge crane systemDRrHenan Dongqi Machinery Co., Ltd

  • FESTOON CLAMPS : Festoon clamps anchor the festooning at the start of the monorail. They also prevent the festoon gliders from exiting the track and they can provide a redundant stop of the trolley.
  • END STOP BUMPERS : High-impact molded end stop bumpers are provided on all monorails, to prevent the trolley from exiting the track. The bumpers are bolted to the track to physically limit the travel of the trolley.
  • UNIVERSAL BUMPERS: A universal bumper can be used as a secondary end stop, either internally or externally.

Free standing bridge crane kitsDRrHenan Dongqi Machinery Co., Ltd
 DRrHenan Dongqi Machinery Co., Ltd

Free standing bridge crane is one type of Dongqi free standing crane. Dongqi free standing crane and free standing crane systems offers your completed bridge crane services, CE quality, Cost-effective price, Quick delivery, Easy installation, Low maintenance. contact us  to learning more on the free standing bridge crane now.  DRrHenan Dongqi Machinery Co., Ltd
