5 ton double rail electric trolley for FEM overhead crane in Pakistan

5 ton electric trolley for sale Pakistan. Dongqi 5 ton double rail electric trolley are used on a fem overhead crane in a steel mill in Pakistan. Check 5 ton electric trolley Pakistan project now. Dongqi electric trolley for sale at good price. Check now.sEwHenan Dongqi Machinery Co., Ltd

5 ton double rail electric trolley for FEM overhead crane in Pakistan

5 ton electric trolley for sale Pakistan. Dongqi 5 ton double rail electric trolley are used on a fem overhead crane in a steel mill in Pakistan. Check 5 ton electric trolley Pakistan project now. Dongqi electric trolley for sale at good price. Check now.sEwHenan Dongqi Machinery Co., Ltd

5 ton electric trolley for FEM overhead crane Pakistan

5 ton electric trolley for FEM overhead crane PakistansEwHenan Dongqi Machinery Co., Ltd

European fem overhead crane

Europe type overhead crane is a high-end type of overhead crane, there is no this definition in technical concept. it is a Summary of Domestic overhead crane (based on the Soviet design and manufacturing technology) reliable, versatile, low prices, combined with advanced Europe Crane advanced technology, compact structure, light weight, energy saving, low noise and other characteristics by Chinese end users, it is a new definition of high-end bridge gantry crane according to the use of China's proposed characteristics of the bridge gantry crane. There is a clear market demand for this type crane.sEwHenan Dongqi Machinery Co., Ltd

Fem overhead crane and  traditional ovehread crane comparingsEwHenan Dongqi Machinery Co., Ltd

Fem overhead crane and  traditional ovehread crane comparing: the FEM overhead crane saving more woking spacesEwHenan Dongqi Machinery Co., Ltd

The concept of European cranes is formed in recent years in the industry, the purpose is distinguish from the previous so-called domestic, Soviet (Soviet), traditional cranes. Mainly include: overhead cranes, gantry cranes, cantilever cranes, flexible beam cranes, explosion-proof cranes and other industrial cranes.sEwHenan Dongqi Machinery Co., Ltd

Europe type cranes are based on the European lightweight and modular design concept and advanced manufacturing process, so that the entire crane compact, smooth operation, weight loss, height reduction, energy saving, greatly reducing the user's crane construction costs and crane Operating costs, improve the crane's overall quality and performance. Europe type cranes will become the mainstream of the development trend of cranes and market demand.sEwHenan Dongqi Machinery Co., Ltd

Fem overhead crane and FEM <a href=/electric-hoist-for-sale.html target=_blank class=infotextkey>electric hoist</a>sEwHenan Dongqi Machinery Co., Ltd

Fem overhead crane and FEM electric hoistsEwHenan Dongqi Machinery Co., Ltd

European crane for the Peoples’ Steel Mill

With the constant efforts, Dongqi Group has made great achievements in the design and production of European cranes, meanwhile occupy a place of European crane market.sEwHenan Dongqi Machinery Co., Ltd
European crane is one kind new developed crane which is accorded with the FEM/DIN standard;sEwHenan Dongqi Machinery Co., Ltd

It includes the advantage such as the light dead weight, small wheel pressure, compact structure, low energy consumption and VFFD speed etc.sEwHenan Dongqi Machinery Co., Ltd
Compared with the traditional crane, the limit distance between well and hook is much smaller and lifting height is much higher so as to increase the working place of the existing warehouse.sEwHenan Dongqi Machinery Co., Ltd

5 ton electric trolley for fem overhead crane

Electric trolley in Dongqi workshopsEwHenan Dongqi Machinery Co., Ltd

Electric trolley in Dongqi workshopsEwHenan Dongqi Machinery Co., Ltd

On July,2016, we received one inquiry from Peoples’ steel mill to purchase the new double rail trolley for their existing crane, and we got the below specifications:sEwHenan Dongqi Machinery Co., Ltd

  • Type of electric trolley: Double rail electric trolley
  • Electric trolley lifting capacity: 5tons
  • Electric trolley lifting height: 9 meters
  • Electric trolley gauge: 1.1meters, 1.5meters and 1.62meters
  • Motor and electrics must be the European brand.

Once we get the above electric trolley specifications, we talked with our designer engineer and conclude the technical & commercial offer for them.sEwHenan Dongqi Machinery Co., Ltd

  • Lifting capacity and lifting height are the normal specifications and no problem.
  • The gauge is the rail to rail distance of the traveling trolley. As our standard double girder overhead crane is from 1.5meters to 2meters; After our discussion, we can customized the 1.1meters gauge for them.
  • We select the ABM Germany three-in-one motor and Schneider electrics for them. Three-in-one motor is the reducer motor which means motor, reducer and gearbox together as one. All electrics such as the contactor, inverter and switches are come from Schneider France.

High quality crane and hoist parts for the fem cranesEwHenan Dongqi Machinery Co., Ltd

High quality crane and hoist parts for the fem cranesEwHenan Dongqi Machinery Co., Ltd

  • Finally we satisfied all the questions for the Peoples’ Steel Mill, then we get the order.

Once we get the original irrevocable letter of credit from our customer, we start the production. Production last 25 working days. sEwHenan Dongqi Machinery Co., Ltd

About this kind European lifting mechanism, there is no any welding and all the connections are by the high strength bolts. All the motors are the variable speed motor and the shell box is stoving varnish technology.sEwHenan Dongqi Machinery Co., Ltd
Most customer is curious to know what kind switches are you used for the hoist. We used are the below cross limit switch for the traveling. Cross limit switch is the cross shape. During the worktime, it can takes two times protection for the crane traveling, the first stop will lower the traveling speed and the second stop will make the crane stop smoothly, in this way, we can reduce the damage which is taken by the collusion.sEwHenan Dongqi Machinery Co., Ltd

  • After production, we send the client pictures for reference; then arrange the package.

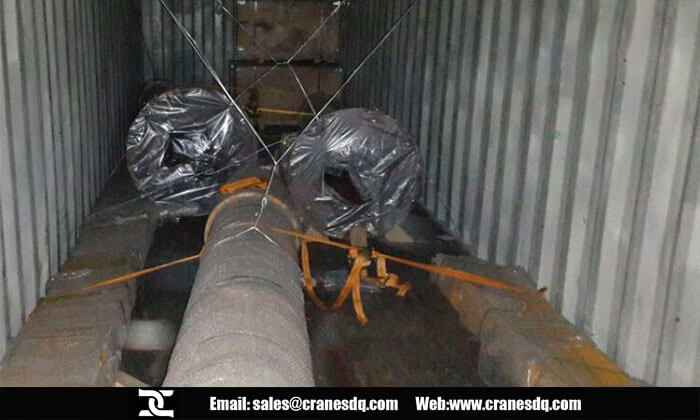

5 ton electric trolley for delvier to PakistansEwHenan Dongqi Machinery Co., Ltd

5 ton electric trolley for delvier to PakistansEwHenan Dongqi Machinery Co., Ltd

About the package, our company policy is package the hoist and electrics by wooden box. Once we load the box into the container, we will fix the box by rope again to avoid the damage from shipment collusion. If you want to know more about fem overhead crane, electric hoist, and trolley or other types of cranes and hoist, please feel free to contact us or send an email to sales@cranesdq.com. Whatsapp: +86 151 3871 1597.sEwHenan Dongqi Machinery Co., Ltd
